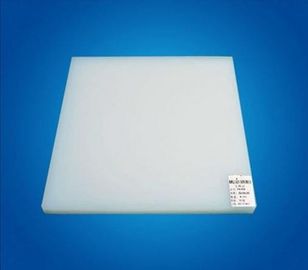

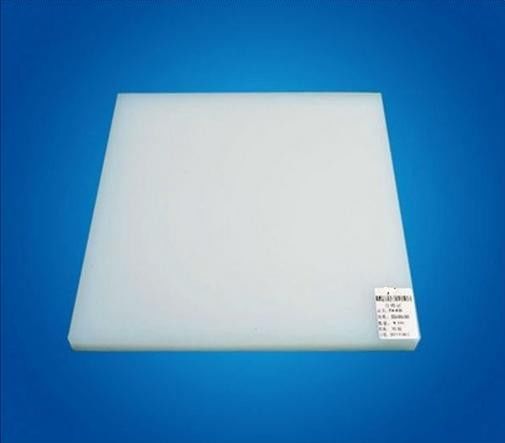

15.0MPa Non-Stick PFA Plastic Sheet Re-Moulding Potential For Hose

Large Image : 15.0MPa Non-Stick PFA Plastic Sheet Re-Moulding Potential For Hose

Product Details:

Place of Origin:	China
Brand Name:	B&C
Certification:	SGS,UL, CE,IOS9001,ISO14001
Model Number:	PFA Sheet-001
Average particle size:	1mm-30mm

Payment & Shipping Terms:

Minimum Order Quantity:	5KGS
Price:	Negotiable
Packaging Details:	Ply-Wooden Cases
Delivery Time:	10-20days
Payment Terms:	T/T, LC
Supply Ability:	110Tons/month

Contact Now

We are Good Supplier of Molded Plastic Containers from China

Molded Plastic Containers

An RFID assembly includes a base having a peripheral wall, an RFID inlay including an RFID tag disposed within the peripheral wall, and a disk having a periphery engaged by the peripheral wall to capture the inlay between the base and the disk within the peripheral wall. One of the base and the disk has external fingers for releasably securing the assembly to a support structure, such as a projection on a mold core for disposition within a mold cavity to mold a container preform around the mo

Detailed Product Description

Applications:	Hose	Density:	2.10 - 2.30g/cm³
Elongation:	150%	Feature:	Non-Stick\|Re-Moulding Potential
Product Name:	PFA Plastic Sheet	Tensile Strength:	15Mpa
Highlight:	pfa film , pfa pipe

15.0MPa Non-Stick PFA Plastic Sheet Re-Moulding Potential For Hose

Quick Detail:

1. Long Continuous lengths

2. Very high working temperatures

3. Non-stick characteristics

4. Low friction surface

5. Very high resistance to chemicals and solvents

6. Very high electrical resistance

7. Bio-compatibility

8. Welding and re-moulding potential

Description:

PFA (also named fusible polytetrafluoroethylene) keeps PTFE excellent chemistry stability, low and high

temperature resistance. PFA sheet is manufactured by molding and extruding method with PFA resin.

is the most chemical resistance of all known plastics. It does not age. It has the lowest coefficient of friction

of all known solid materials and a wide range of practicable temperature from -180%°C - +260°C.

Applications:

Heat exchangers

Laboratory applications

Semiconductor

Flow monitoring

Emissions monitoring

Double containment systems

Food processing

Electrical insulation

Automotive hose

Automotive paint spray

Specifications:

Property	Unit	Result
Appetent density	g/cm3	2.10—2.30
Tensile strength (min)	MPa	≥15.0
Ultimate elongation (min)	%	%150
Dialectic strength Dialectic strength	KV/mm	10

Length(mm)×Width(mm)	Thickness(mm)
Length(mm)×Width(mm)	Nominal	Tolerance
150×150	1.0-30	±0.30-±0.50
250×250	1.5-30	±0.30-±0.50
300×300	1.5-30	±0.30-±0.50
450×450	1.5-30	±0.30-±0.50
600×600	2-30	±0.30-±0.50
800×800	3-30	±0.30-±0.50
1000×1000	3-30	±0.30-±0.50
1200×1200	3-30	±0.30-±0.50
1000×2000	5-35	±0.30-±0.60
1500×1500	5-30	±0.30-±0.50
1800×1800	8-30	±0.30-±0.50
2000×2000	8-30	±0.30-±0.50

Remarks:

PFA sheet/PFA board are in available in other sizes and thickness according to customer's specific

requirements.

Competitive Advantage:

1.Excellent Chemical property
2.Virgin and recycled materials available
3.Any sizes available
4.Fast Usually
