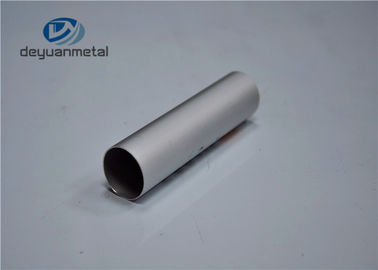

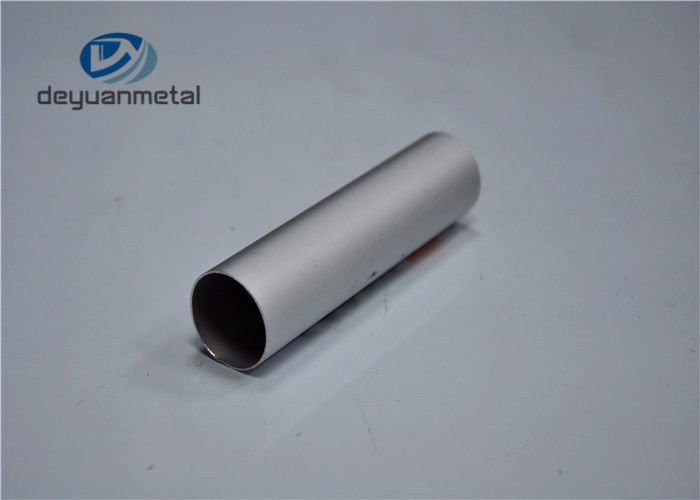

Anodized Aluminum Extrusion Profile Aluminum Round Tubing With CNC Machining

Product Name:

Anodized Aluminium

Alloy:

6063,6060,6463



Material :





Aluminium Alloy


Surface Treatment:

Mill Finished, Anodizing, Electrophoresis,
Powder Coating, Polishing, Wooden grain,
Sand blasting

Deep Process :

Milling, Drilling ,Bending, Cutting

Temper:

T5,T6,T66

Alloy

Si

Mg

Fe

Cu

Mn

Zn

Cr

Ti

6063

0.2~0.6

0.45~0.90

<0.35

<0.10

<0.10

<0.10

<0.10

<0.10

6060

0.3~0.6

0.35~0.60

0.1~0.3

~

<0.10

<0.15

<0.05

~

6463

0.2~0.6

0.45~0.90

<0.15

<0.20

<0.05

<0.05

~

~

6005

0.6~0.9

0.40~0.60

<0.35

<0.10

<0.10

<0.10

<0.10

<0.10

6061

0.4~0.8

0.80~1.2

<0.70

0.15~0.4

<0.15

<0.25

0.04~0.35

<0.15

6082

0.7~1.3

0.60~1.2

<0.50

<0.1

0.4~1.0

<0.20

<0.25

<0.10

6351

0.7~1.3

0.40~0.8

<0.50

<0.1

0.4~0.8

<0.20

~

<0.10

Alloy

Temper

Tensile strength

Yield strength

Elongation

6063


T5

≥ 160Mpa

≥ 110Mpa

≥ 8%

T6

≥ 205Mpa

≥ 180Mpa

≥ 8%

6061

T5

≥ 265Mpa

≥ 245Mpa

≥ 8%

Material

6063 6060 6463 T5 T6 T66

Surface

Mill Finished, Anodizing, Electrophoresis, Powder Coating ,Polishing, Wooden grain, Sand Blasting

Color

Clear Satin, Bronze, Black, Golden, Silver, other colors for Powder Coating

MOQ

1ton. Usually 12 tons for a 20 feet container; 24 tons for a 40 feet container.

Length

For Anodizing and Electrophoresis: Maximum 6.8 Meters
For Powder Coating : Maximum 12 Meters

Packing

1) EPE, waterproof paper wrapped in small bundles.
2) paper interleave each piece and packing in wooden box and finally on Steel Rack to pull into container

Sample delivery

Two weeks (one week for mould +one week making sample)

Sample design

It is better we can get your drawing or sample, we mainly make according to your design, and we can keep confidential for your design.

Maximum extruder machine

3500 tons; Minimum extruder machine: 500 tons
