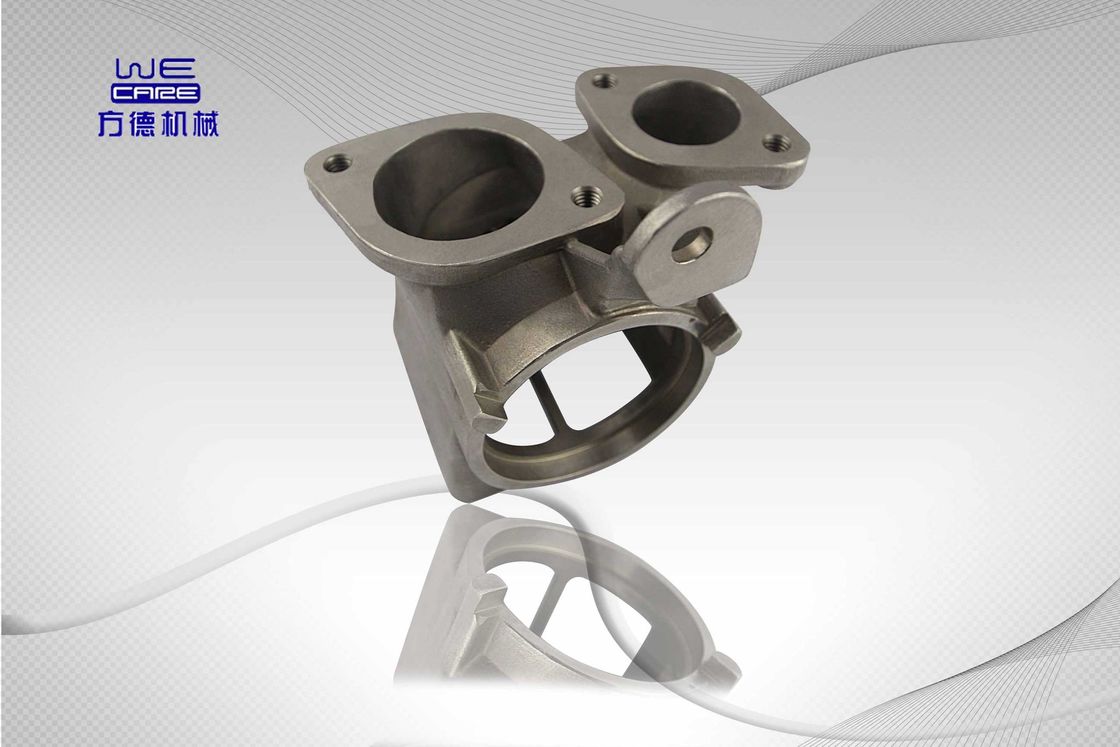

Customized Aluminum Precision Die Casting Part With CNC Machining Services

Large Image : Customized Aluminum Precision Die Casting Part With CNC Machining Services

Product Details:

Place of Origin:	China
Brand Name:	N/A
Certification:	ISO9001: 2000
Model Number:	ADC-063

Payment & Shipping Terms:

Minimum Order Quantity:	500
Packaging Details:	Standard Exporting Package
Delivery Time:	30 DAYS
Payment Terms:	T/T
Supply Ability:	3000 tons / Year

Contact Now

We are Good Supplier of CNC Machined Parts from China

CNC Machined Parts

A customer sends a CAD file for the part to be manufactured to the system. The system assesses the CAD file to determine various pieces of manufacturing information. One or more acceptability criteria are applied to the part, such as whether the part can be machined in two opposing orientations in a 3 axis CNC machine. If not, the system sends a file to the customer graphically indicating which portions of the part need modification to be manufacturable. The system provides the customer with

Detailed Product Description

Material:	Aluminum

Quick Detail:

Item	Description	The contents
Die casting parts	Model	Part-063
	Molding technics	Die casting
	Material	A380
	Dimension
	The weight	1665G
	Surface treatment	electroplate

Description:

1. Careful revision on the drawings, supporting by 3-D mould's software of PRO/E, solidwords and Auto CAD, building the 3-D moulds to imitate the real parts according to the customers' drawing

2. Full dimensions inspection and note in the drawings for the first artile submittion

3. Further CNC machining centers' machining work, CMM inspection when production

4. Hight percentage random final inspection before shipping with 3.1B reports submittion.

5. Material: Bronze of C83600, C95200, C95400...Aluminum Alloy of 356-T6, 6061...Ect as per standard of ASTM, DIN, BS, JIS

6. Casting weight: 0.1 kg to 200 kg

Specifications:

Item	Description	The contents
Die casting parts	Model	Part-063
	Molding technics	Die casting
	Material	A380
	Dimension	200mm200mm40mm
	The weight	1665G
	Surface treatment	electroplate
Die casting moulds	Cavity	Single
	Material	SKD61
	Heat treatment	Hardened
	Hardness	HRC50~55
	Mould feature	Advanced design, Novel structure, High precision, Quality materials, Long lifetime, Short delivery time
Equipments	CNC precision mould engraving machine, CNC forming machine CNC turning, EDM, Linear cutting machine, Die spotting machine(200T), Die casting machine(150T~2000T), Lathe, Grinding machine; CMM, Material detector, Hardness test device, spectrograph, etc
Software	CAD, UG, Pro/E, JSCAST-v8, Solidworks etc.
Quality certification	. ISO9001-2000

Customized Aluminum Precision Die Casting Part With CNC Machining Services

Competitive Advantage:

Owned die casting and plating workshops. Advanced equipment and excellent R&D Team. Highly skilled manufacturing process. A broad variety of ODM&OEM product range. Strict quality Control System with networked CAD/CAM system, advanced multi-axis CNC machining centers and percision EDM installed, we are capable of producing over 200sets of die casting moulds with capacity below 3000 tons per year, and develop the tooling above 5000tons
