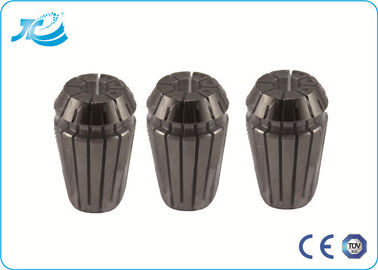

ER CNC Collet , ER 32 Collet Chuck CNC Machine Tools for Milling Machine

Large Image : ER CNC Collet , ER 32 Collet Chuck CNC Machine Tools for Milling Machine

Product Details:

Place of Origin:	China
Brand Name:	JT
Certification:	CE,TUV
Model Number:	ER

Payment & Shipping Terms:

Minimum Order Quantity:	20pcs
Price:	Negotiation
Packaging Details:	Each products packed with bubble and then Putted in carton firstly,finally reinforced with wooden case for outer packing
Delivery Time:	5 working days after received your payment
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	200,000pcs per month

Contact Now

We are Good Supplier of CNC Machined Parts from China

CNC Machined Parts

A customer sends a CAD file for the part to be manufactured to the system. The system assesses the CAD file to determine various pieces of manufacturing information. One or more acceptability criteria are applied to the part, such as whether the part can be machined in two opposing orientations in a 3 axis CNC machine. If not, the system sends a file to the customer graphically indicating which portions of the part need modification to be manufacturable. The system provides the customer with

Detailed Product Description

Product Name:	ER Collect , ER32 Collect Chuck Spring Collect Chuck For Milling Machine	Accuarcy:	High Accuarcy
Usage:	General	Power:	Clamping
Diameter:	33mm	Range:	1-20mm
Highlight:	er32 collet chuck , cnc lathe collet chuck

ER CNC Collet , ER 32 Collet Chuck CNC Machine Tools for Milling Machine

Description

1, Collet inner hole,groove,end and the cylindrical are grinding many times, can reach Ra0.4.
2, Collet groove use grinding process,suitable for high speed machining.
3, Two looks provide:polishing and chemical nickle-plating processing.
4, Cleaness better,Accuracy stable,Surface more smooth,Feel comfortable,Appearance nice.

Dongguan Diamond Hardware Company Limited was founded in 2010,which is the most professional Solid Carbide Tool manufacturer. We specialize in designing,developing and manufacturing various of precision indexable cutting tools. We also produce the customization products according to customers’ demands,such as Aerospace,Medical,Automotive,Mechanical,Mold & Die,Electronic Industries and customized tool. No matter what application or industry you are serving,we are sure that Diamond can offer you the most suitable and outstanding quality tools with competitive price.

Collect must be assembled into the clamping nut before inserting into the chuck.

Specifications:

Metric Size
Model No.	D	L	d	Weight(Kg)
ER08	8.5	13.5	1,1.5,2,2.5,3,3.5,4,4.5,5	0.01
ER11	11.5	18	1,1.5,2,2.5,3,3.5,4,4.5,5,5.5,6,6.5,7	0.01
ER16	17	27	1,1.5,2,2.5,3,3.5,4,4.5,5,5.5,6,6.5,7,	0.03
			7.5,8,8.5,9,9.5,10
ER20	21	31	1,1.5,2,2.5,3,3.5,4,4.5,5,5.5,6,6.5,7,	0.04
			7.5,8,8.5,9,9.5,10,10.5,11,11.5,12,
			12.5,13
ER25	26	35	2,3,4,5,6,7,8,9,10,11,12,13,14,15,16	0.07
ER32	33	40	2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,	0.15
			17,18,19,20
ER40	41	46	3,4,5,6,7,8,9,10,11,12,13,14,15,16,	0.27
			17,18,19,20,21,22,23,24,25,26
ER50	52	60	12,14,16,18,20,22,24,26,28,30,32,34	0.45

Inch Size
Model No.	D	L	d	Weight(Kg)
ER11	11.5	18	1/8,5/32,3/16,7/32,1/4	0.01
ER16	17	27	1/8,5/32,3/16,7/32,1/4,9/32,5/16,11/32,	0.03
			3/8
ER20	21	31	1/8,5/32,3/16,7/32,1/4,9/32,5/16,11/32,	0.04
			3/8,13/32,7/16,1/2
ER25	26	35	1/8,5/32,3/16,7/32,1/4,9/32,5/16,11/32,	0.07
			3/8,13/32,7/16,1/2,9/16,19/32,5/8
ER32	33	40	1/8,5/32,3/16,7/32,1/4,5/16,11/32,3/8,	0.15
			13/32,7/16,1/2,17/32,9/16,19/32,5/18,
			21/32,11/16,3/4,25/32
ER40	41	46	1/8,5/32,3/16,1/4,9/32,5/16,3/8,7/16,	0.27
			15/32,1/2,9/16,5/8,19/32,11/16,23/32,
			3/4,25/32,13/16,27/32,7/8,15/16,31/32,1

ER08		ER11		ER16		ER20
NO.	Range	NO.	Range	NO.	Range	NO.	Range
ER08-01	1.0-0.5	ER11-01	1.0-0.5	ER16-01	1.0-0.5	ER20-01	1.0-0.5
ER08-1.5	1.5-1.0	ER11-1.5	1.5-1.0	ER16-1.5	1.5-1.0	ER20-1.5	1.5-1.0
ER08-02	2.0-1.5	ER11-02	2.0-1.5	ER16-02	2.0-1.5	ER20-02	2.0-1.5
ER08-2.5	2.5-2.0	ER11-2.5	2.5-2.0	ER16-2.5	2.5-2.0	ER20-2.5	2.5-2.0
ER08-03	3.0-2.5	ER11-03	3.0-2.5	ER16-03	3.0-2.5	ER20-03	3.0-2.5
ER08-3.5	3.5-3.0	ER11-3.5	3.5-3.0	ER16-3.5	3.5-3.0	ER20-3.5	3.5-3.0
ER08-04	4.0-3.5	ER11-04	4.0-3.5	ER16-04	4.0-3.5	ER20-04	4.0-3.5
ER08-4.5	4.5-4.0	ER11-4.5	4.5-4.0	ER16-4.5	4.5-4.0	ER20-4.5	4.5-4.0
ER08-05	5.0-4.5	ER11-05	5.0-4.5	ER16-05	5.0-4.5	ER20-05	5.0-4.5
		ER11-5.5	5.5-5.0	ER16-5.5	5.5-5.0	ER20-5.5	5.5-5.0
		ER11-06	6.0-5.5	ER16-06	6.0-5.5	ER20-06	6.0-5.5
		ER11-6.5	6.5-6.0	ER16-6.5	6.5-6.0	ER20-6.5	6.5-6.0
		ER11-07	7.0-6.5	ER16-07	7.0-6.5	ER20-07	7.0-6.5
				ER16-7.5	7.5-7.0	ER20-7.5	7.5-7.0
				ER16-08	8.0-7.0	ER20-08	8.0-7.0
				ER16-8.5	8.5-8.0	ER20-8.5	8.5-8.0
				ER16-09	9.0-8.0	ER20-09	9.0-8.0
				ER16-9.5	9.5-9.0	ER20-9.5	9.5-9.0
				ER16-10	10-9.0	ER20-10	10-9.0
						ER20-10.5	10.5-10
						ER20-11	11-10
						ER20-11.5	11.5-11
						ER20-12	12-11
						ER20-12.5	12.5-12
						ER20-13	13-12
ER25		ER32		ER40		ER50
NO.	Range	NO.	Range	NO.	Range	NO.	Range
ER25-02	2.0-1.0	ER32-02	2.0-1.0	ER40-03	3.0-2.0	ER50-12	12-10
ER25-03	3.0-2.0	ER32-03	3.0-2.0	ER40-04	4.0-3.0	ER50-14	14-12
ER25-04	4.0-3.0	ER32-04	4.0-3.0	ER40-05	5.0-4.0	ER50-16	16-14
ER25-05	5.0-4.0	ER32-05	5.0-4.0	ER40-06	6.0-5.0	ER50-18	18-16
ER25-06	6.0-5.0	ER32-06	6.0-5.0	ER40-07	7.0-6.0	ER50-20	20-18
ER25-07	7.0-6.0	ER32-07	7.0-6.0	ER40-08	8.0-7.0	ER50-22	22-20
ER25-08	8.0-7.0	ER32-08	8.0-7.0	ER40-09	9.0-8.0	ER50-24	24-22
ER25-09	9.0-8.0	ER32-09	9.0-8.0	ER40-10	10-9.0	ER50-26	26-24
ER25-10	10-9.0	ER32-10	10-9.0	ER40-11	11-10	ER50-28	28-26
ER25-11	11-10	ER32-11	11-10	ER40-12	12-11	ER50-30	30-28
ER25-12	12-11	ER32-12	12-11	ER40-13	13-12	ER50-32	32-30
ER25-13	13-12	ER32-13	13-12	ER40-14	14-13	ER50-34	34-32
ER25-14	14-13	ER32-14	14-13	ER40-15	15-14
ER25-15	15-14	ER32-15	15-14	ER40-16	16-15
ER25-16	16-15	ER32-16	16-15	ER40-17	17-16
		ER32-17	17-16	ER40-18	18-17
		ER32-18	18-17	ER40-19	19-18
		ER32-19	19-18	ER40-20	20-19
		ER32-20	20-19	ER40-21	21-20
				ER40-22	22-21
				ER40-23	23-22
				ER40-24	24-23
				ER40-25	25-24
				ER40-26	26-25

Products display

ER CNC Collet , ER 32 Collet Chuck CNC Machine Tools for Milling Machine
