High Polish P20 Steel Round Bar for Precise Plastic Mould

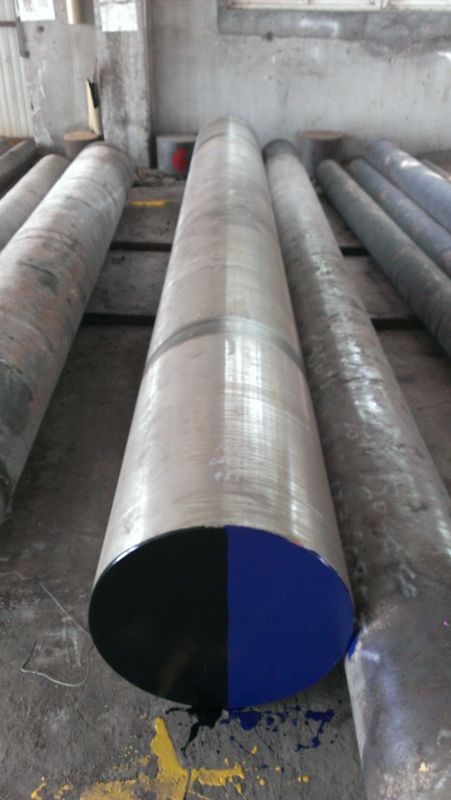

Large Image : High Polish P20 Steel Round Bar for Precise Plastic Mould

Product Details:

Place of Origin:	China
Brand Name:	Taigang steel, Bao steel, Wuyang steel
Certification:	ISO9001:2008;SGS TEST;Mill certificate test
Model Number:	DIN1.2311/AISIP20/GB3Cr2Mo

Contact Now

We are Good Supplier of Precision Plastic Mould from China

Precision Plastic Mould

The utility model relates to a precise plastic helical gear mould. The preciseplastic helical gear mould comprises a fixed mould and a movable mould, and is characterized in that the fixed mould comprises an installation plate, a stripper plate, a fixed mould plate and an embedded piece of a fixed mould chamber, and the movable mould comprises a movable mould base plate fixed by bolts, square iron, a substrate, a movable mould plate and an embedded piece of a movablemould chamber, wherein the

Detailed Product Description

Highlight:

forging die material

plastic injection mold

High Polish P20 Steel Round Bar for Precise Plastic Mould

P20 Mold Steel Round Bar

Description:

1.P20 /DIN 1.2311 /GB 3Cr2Mo Mold Steel

2.Hot rolled &Forged condition, Pre-harden &tempering , black surface

3.Hardness: 28~34 HRC

4.Hot rolled technology:EAF+LF+VD

Forged technology: EAF+LF+VD+ESR+Forging +Q T + Machined surface

5. Production leadtime: 7~10 days

6. Ultrasonic test standard: SPE1921-GR3, CLASS C/C or D/D

Applications

P20 /DIN 1.2311 /GB 3Cr2Mo Mold Steel used for various large-sized or medium-sized precise plastic moulds ,injection palstic mould frame of PA, POM, PS, PE, PP, ABS.and low melting point alloy parts, like: tin, zinc and lead alloy casting moulds

Specifications

Hot rolled condition	Steel round bar (mm)		Mill name
	Diameter	Length	Mill name
	¢16~¢95	2000~5800	XiangGang, LiuGang steel
	¢105~¢195	2000~5800	XiangGang,BaoGang steel
Forged condition	¢200~¢480	2500~4000	Local mill with 6000tons fluid forged machine

Competitive Advantage

1).All the material are inspected with 3 times to meet the highly standards

2).Good machinery ability & texturing property

3).Competitive price

4).Fast production leadtime

5). Pure steel quality & stable quality to be guarantee,

Highly polish characterise

Chemical composition

C	Mn	Si	S	P	Cr	Mo
0.35	0.80	0.60	0.03	0.03	1.65	0.45

Compared grades(based on usage)

Chinese	American	German	Swedish	Japanese
GB	AISI	DIN	ASSAB	JIS
3Cr2Mo	P20	1.2311	618	PDS-3
