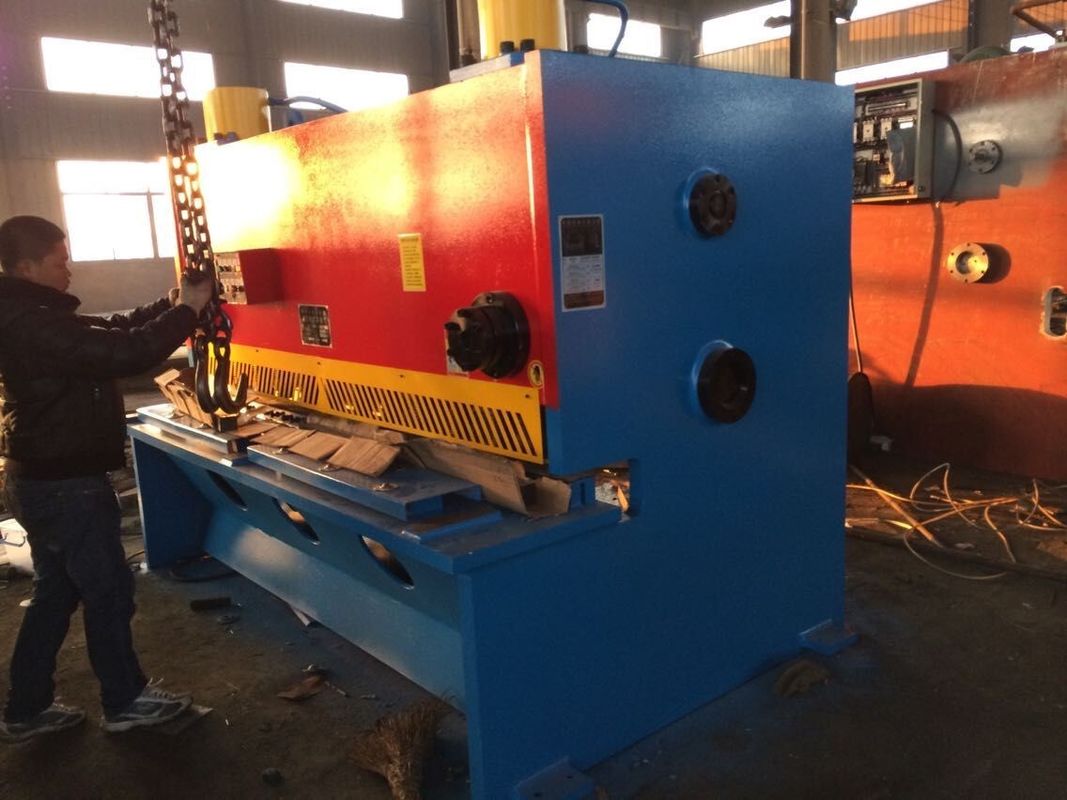

Hydraulic Shear Machine Steel Cutting Machine Custom Cnc Machining 4 x 2500 mm

1.Specifications:

2.Description:

1. Using the three-rail oblique edge structure, namely a knife to constrain cross-section through three fulcrum, while the former is the elastic fulcrum through be for the spring preload, excluding the gap between each motion pair, while the knife parallel processing error frame rail surface can be compensated, thus ensuring the stability of the blade gap; three-wheel, and the fulcrum is adjustable eccentric pivot through eccentric adjustment under the knife around the fulcrum, leveraged, blade gap is changed so as to achieve the purpose blade gap adjustment. As the eccentric adjusting drive motor on the outside of the machine column easy to adjust, so that the blade gap adjustment there fore becomes very easy and fast.

2. Hydraulic cylinders in the form of a two-series body. Due to changes in shear cuts from left to right, so the load also changes the fuel tank can be effectively used in series to with stand these loads change (anti then set) to prevent changing the shear angle; due to the application of a series of tanks, turret is not exposed to as torsional loads wing beam shears knife like that, it is relatively more compact structure.)

3, The hydraulic system uses valves integrated agencies, high-reliability, low fluid resistance, flow large flow, while the return fuel tank turret supported by the accumulator(eg the role of spring), when a knife to the bottom dead center, the main that return valve energized knife, so fast return speed. Accumulator while using the holding, personal safety when changing blades greatly improved. Through a series of oil to fill the cavity drain, you can adjust the angle of shear, a small cut in the shear angle shear deformation can be reduced to improve the quality of finished products; And usually, the full length of the blade gap uniform shear angle side degree are call, but also improve operational safety.

4.Main configuration:
