Mirror Polishing Texturing Car Parts Mold for VOLVO / Fast Injection Molding

Large Image : Mirror Polishing Texturing Car Parts Mold for VOLVO / Fast Injection Molding

Product Details:

Place of Origin:	China
Brand Name:	CT Hitop Mold
Certification:	ISO

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD 1-10000000
Packaging Details:	wooden box for mold and tooling , paper cartons for injection parts
Delivery Time:	depends on the mold size, 20-80 days
Supply Ability:	900 sets of molds per year

Contact Now

We are Good Supplier of Hot Runner Injection Molding from China

Hot Runner Injection Molding

The invention discloses an injection molding machine for automotive interior parts and a preparation method for the automotive interior parts. The injection molding machine comprises a bicolor vertical injection molding machine, wherein a compression molding mold and an injection mold are arranged in the bicolor vertical injection molding machine, wherein the compression molding mold is used for spreading an injection molding part into the injection mold, the injection mold comprises an upper

Detailed Product Description

Highlight:

custom plastic injection molding

home plastic injection molding

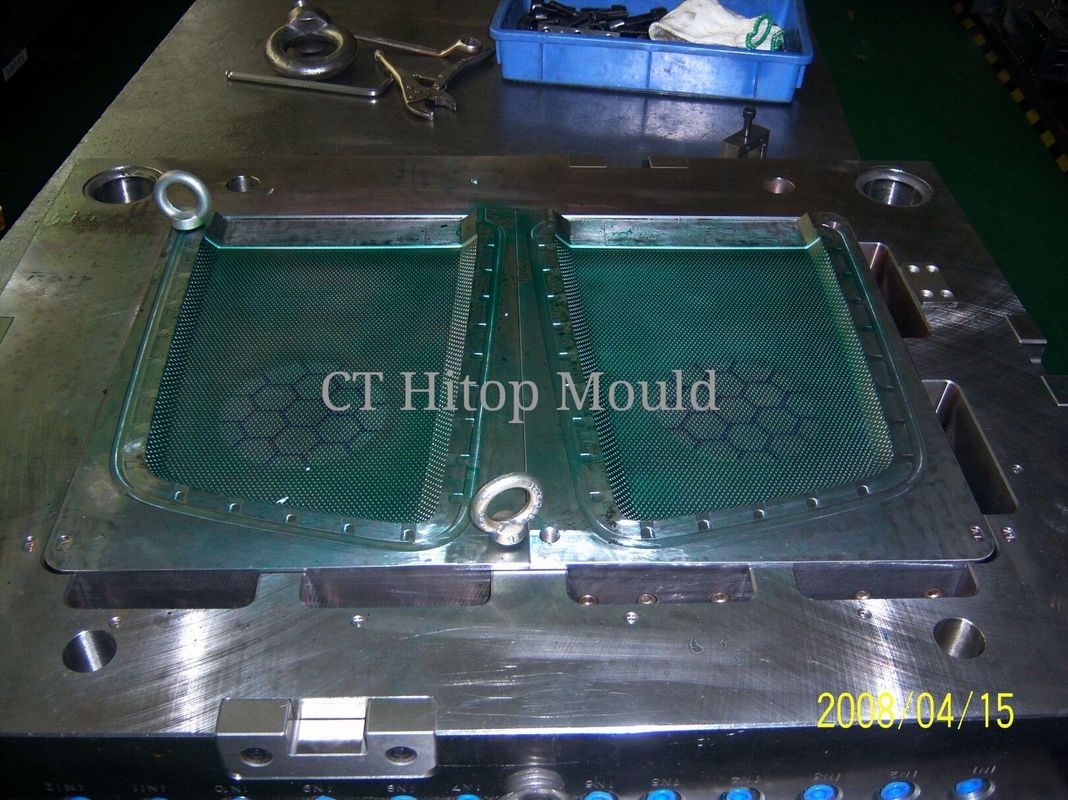

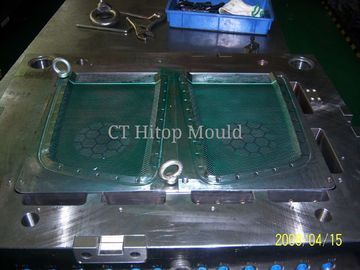

Mirror Polishing Texturing Car Parts Mold for VOLVO / Fast Injection Molding

HITOP MOULD.pdf

Cavity: 1+1 family mold, left and right

Part name: VOLVO Auto component

Mold type : 2 plates

Specialty : reversed mold ,YUDO hot runner system 6 hot tips in the back side ,

8 lifters , there are more than 9000 holes directly EDM processed Agie Charmilles no flush mirror EDM machine .

Mold components : DME Standard

Unit: Metric

Part resin : ABS + PC

We are providing completed DFM analysis before the mold making to avoid the customer modification cost after the mold manufacturing or any design mistakes. DFM details are :

1. Cavity layout

2. Slider and lifter location and movement direction.

3. PL (main parting line, insert parting line, slider parting line)

4. ejector pins

5. gate location and type

6. Draft analysis.

7.possible molding defects such as shrinkage, welding line, scratch and proposed solution.

8. Mold flow for filling ,warpage, cooling ,etc.

Application:	Auto mobile	Software:	Auto-Cad and UG, Solidworks, ProE
Cavity:	Multi Cavity , single cavity, family mold	Certificate:	ISO9001-2008
Mould Life:	100- 1 million shots	Mold base supplier	LKM
Mold export:	Yes.USA / Europe / India	Standard:	LKM DME HASCO
Steel heat treatment	Yes.	Lead time:	20-80 days depends on the mold size
Gate type:	Sub gate, pin gate, edge gate, banana gate	Runner:	Cold /hot Runner
Dimensions report:	Yes. As per 2D drawing	Schedule report:	Yes, weekly report with pics
Molding parameter availability:	Yes	Mold design for free:	Yes, 2D and 3D

1. Well mold design is half of success . Our engineering department have 25 experienced mold designers utilizing the latest design software such as

2D drawing : Auto CAD , E –drawing

3D drawing : Pro-E ,UG, Solidworks (wildfire version) ,Mastercam

Mold Flow Analysis

2. We have a Project Management team to follow up the mold making :

Time Schedule: We will provide the time schedule every week to report the mold progress.

Dimensions report: Dimensions report will be submitted to customer together with the trial samples.

Heat Treatment and Steel Certificate

Hitop Mold is the one stop shop mold maker in China with over than 15 years mold making experience. Hitop Mold offers integrated capabilities in design ,prototyping ,mold making ,injection molding ,die-casting and simple assembly to take your initial concept to commercialization .
