PA , PS Plastic Film Making Machine , Hollow Blown Film Extrusion Machine
Automatic Hollow Extrusion Blowing Machine for the production for PP,PE,PVE,PA,PS,and other plastic containers

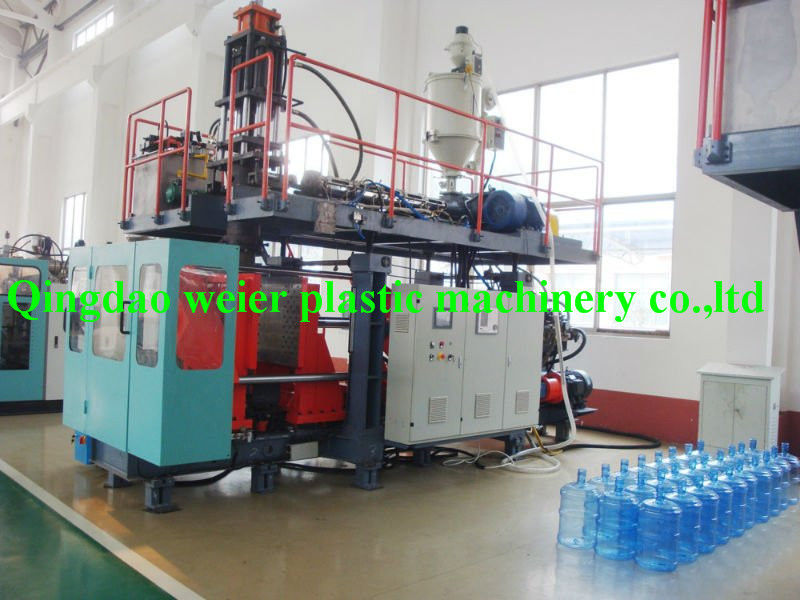

Automatic Hollow Extrusion Blowing Machine
The manufacturing process is divided into three parts:first.heating the extrusion of plastic;second,automatic control technology,mold shift;third step is to blow molding in the mold cavity.Mold design can be diversified according to different products with different design,mold perfect design,advanced technology will allow you to get the perfect plastic bottles and plastci straws and other products.
1)is mainly used for the production for PP,PE,PVE,PA,PS,and other plastic containers,can produce various shape of container.
2)a fully automated system design.Can greatly save you labor costs.
3)automatic production,low investment,high efficiency,safe,fast,easy to operate,,and is conductive to troubleshooting and maintenance.
|Screw L/D ratio||(L/D)||24-30|
|Screw drive power||(KW)||11-15|
|Srew heating capacity||(KW)||7.8-8.5|
|Output of HDPE||(kg/h)||30-35|
|Oil pump drive power||(KW)||5.5|
|Central distance of bi-die||(mm)||110-130|
|Max.Die diameter (Bi-die)||(mm)||55|
|Central distance of three-die||(mm)||80-110|
|Max.Die diameter (Three-die)||(mm)||40|
|Central distance of four-die||(mm)||60-85|
|Max.Die diameter (four-die)||(mm)||25|
|The Average Consumption||(kw/h)||12.5|
|Cooling water pressure||(Mpa)||0.2-0.3|
|Size of machine||(L*M*H)/m||2.8*1.8*2.3|
|Weight of machine||(TON)||3.0|
