PE PP Granules 2300mm Wide Plastic Board Production Line 160kw

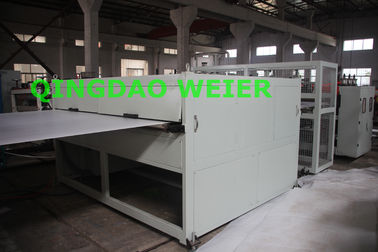

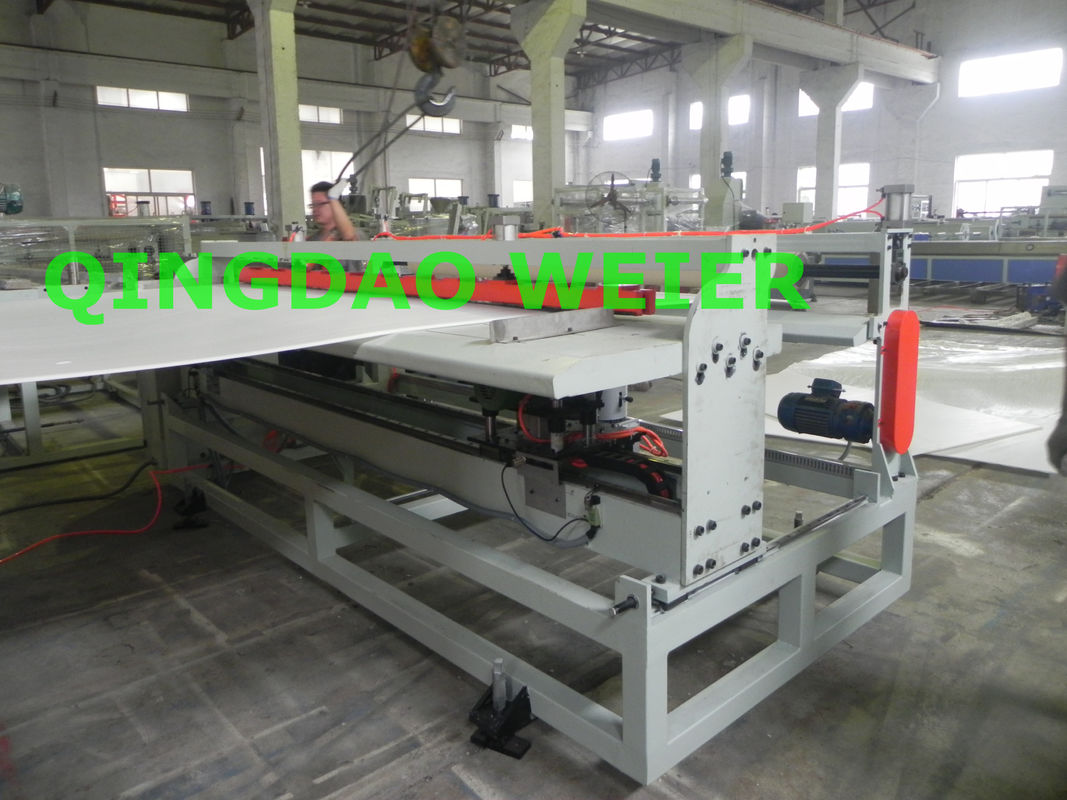

Large Image : PE PP Granules 2300mm Wide Plastic Board Production Line 160kw

Product Details:

Place of Origin:	Qingdao Shandong China
Brand Name:	Weier
Certification:	CE&ISO9001:2008&CE
Model Number:	SJ120/35

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	$180000-$200000/set
Packaging Details:	Film packing for free
Delivery Time:	75 working days since get 30% deposit
Payment Terms:	30% deposit paid by T/T, 70% balance paid after testing in supplier’s factory, before shipping by T/, L/C, T/T, Western Union
Supply Ability:	5 sets/month

Contact Now

We are Good Supplier of Molded Plastic Containers from China

Molded Plastic Containers

An RFID assembly includes a base having a peripheral wall, an RFID inlay including an RFID tag disposed within the peripheral wall, and a disk having a periphery engaged by the peripheral wall to capture the inlay between the base and the disk within the peripheral wall. One of the base and the disk has external fingers for releasably securing the assembly to a support structure, such as a projection on a mold core for disposition within a mold cavity to mold a container preform around the mo

Detailed Product Description

Material:	PE PP Granules	Brand:	WEIER
Thickness:	2-12mm	PLC:	SIEMENS
WIDE:	600-2300MM	Motor:	160kw
Highlight:	plastic extrusion equipment , plastic extrusion machines

2300mm wide for plastic board production line of PP hollow grid board line

1.Hollow board,double wall
2.Width:600-2200mm,
3.Thickness:2,4,6,8,10,12mm

Description:

Process flow of PP hollow sheet machine
Feeding of Material → Mixing and Drying → Extruding → Screen Changer → Melt Pump → Molding by T-die → Vacuum Cooling Calibrator → First Hauling off with Edge Cutting → Annealing Oven → Surface Treatment by Corona and Printer → Air Cooling → Second Hauling off with Edge Cutting → Crosscut Machine → Stacker

Applications:

PP Hollow sheet is lightweight, impact and oil resistant, and waterproof. Applications include packaging containers, display panels, daily use items, stationery, and protective packaging for building materials. PP can be formed into any shape and type of product such as turnover boxes, component boxes and plastic partitions. This is excellent material widely used for protecting electronic parts.

Specifications:

Parameter of PC PE PP hollow board line

Item	Main extruder	Width(mm)	Thickness (mm)	Line speed (m/min)	Output(kg/h)
Item	Main extruder	Width(mm)	Thickness (mm)	Line speed (m/min)	PC	PP	PE
WE-1200	Φ90/35	1100	2-10	0.4-4	150	150	180
WE-1400	Φ100/35	1300	2-10	0.6-4	220	220	230
WE-1600	Φ100/35	1500	2-10	0.4-4	220	220	230
WE-2000	Φ120/35	1900	2-10	0.4-4	350	350	400
WE-2200	Φ120/35	2100	2-16	0.4-4	350	350	400

Main technical specification
Extruder Model	φ135/38,φ50/30	φ110/38,φ45/30
Products width	2100mm	1300mm
Products thickness	2-10mm	2-10mm
Main motor power	185kw/22kw	132kw/22kw
Designed capacity	450-550kg/h	250-350kg/h

PE PP Granules 2300mm Wide Plastic Board Production Line 160kw
