Printer Accessories Plastic Hot Runner Injection Mold ABS PC

Printer Accessories Plastic Hot Runner Injection Mold ABS PC

Quick Detail:

1. The part name: Printer accessories (plastic injection mold)

2. Plastic material: ABS+PC

3. Cavity material: H13 HRC48-52

4. Mold life: 1000k shots or according to customers quantity condition to decide it with saving cost for our customers.

5. Gate type: Point gate, Sub-gate, direct gate, fan gate, edge gate, valve gate, tip gate etc according to our customers requires.

6. Mold base standard: LKM Local standard, DME or HASCO,Customize according to customers' requirements

7. Standard of mold accessories: LKM, DME, HASCO, MISUMI, Meusburger, CUMSA, Progressive, INCORE, HRS, Husky, YUDO, PETS, MOLD-MASTER, MERKLE, Parker, HPS, LKM, EUCHNER, RJG, cilpres, NITTO, CRACK, ASSAB, GSW DIN standard, BOHLER, AISI standard, DAIDO JIS standard, PUNCH etc according to our customers requires.

Description:

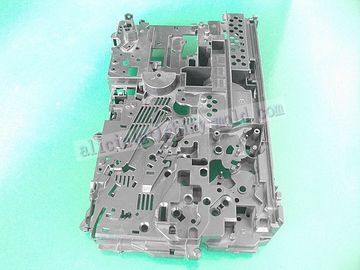

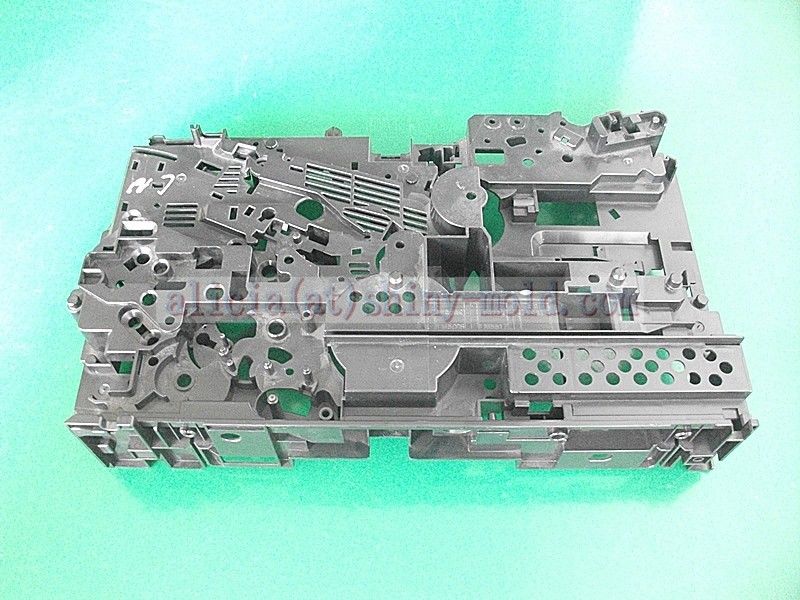

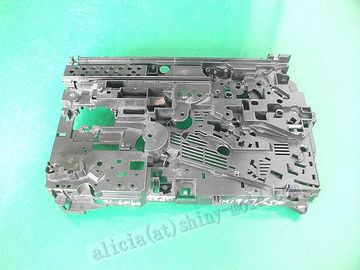

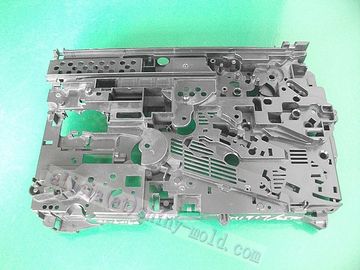

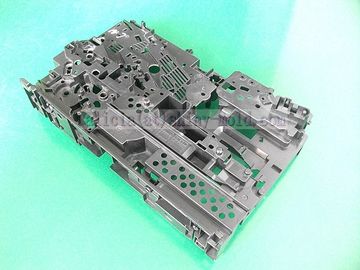

The part name: Printer accessories

Mold type: Plastic Injection Mould with hot runner system

Part Material: ABS+PC

Locating ring Dimension: Ф100

KO Pattern: 200*200

Sprue Radius: SR 19

Ejection type: ejection pins, ejection sleeves.

Mold construction description: hot runner system with point gate, 3 plates, and many sliders, inserts, lifters and shut off area.

This product is made of ABS+PC plastic material and it is one of the components of the reputable brand Printer. The mold construction is complicated and there are many inserts, sliders, lifters and ejection pins, so it has a very high technical requirement for the mould design. The mould is a hot runner mould with the best water cooling system and the part can be molded by automatically.

This part has very high size requirements, the defect showed below will not be acceptable, for example, weld line, Dark Sport,Sliver Marks,Gas Trap Effect,Visible Ejector Marks,Deformation,Short shot Filling,Burnt Streaks,Sink Marks,Flash,Over dimension,Under dimension,Stress Crack etc. Moreover, the product finishing surface must meet the requires more than SPI-SPE-B2.

This mould is made in Shiny Mould Factory. It is a mould exported to Europe, with complicated structures and high quality requests. Customer needs mold life to be over 1 million shots. We can ensure this mold life and give warrant to our customer that once some mould components are broken during working, if it is caused not by the operation fault from the workers, we can provide new mould components to them free of charge.
