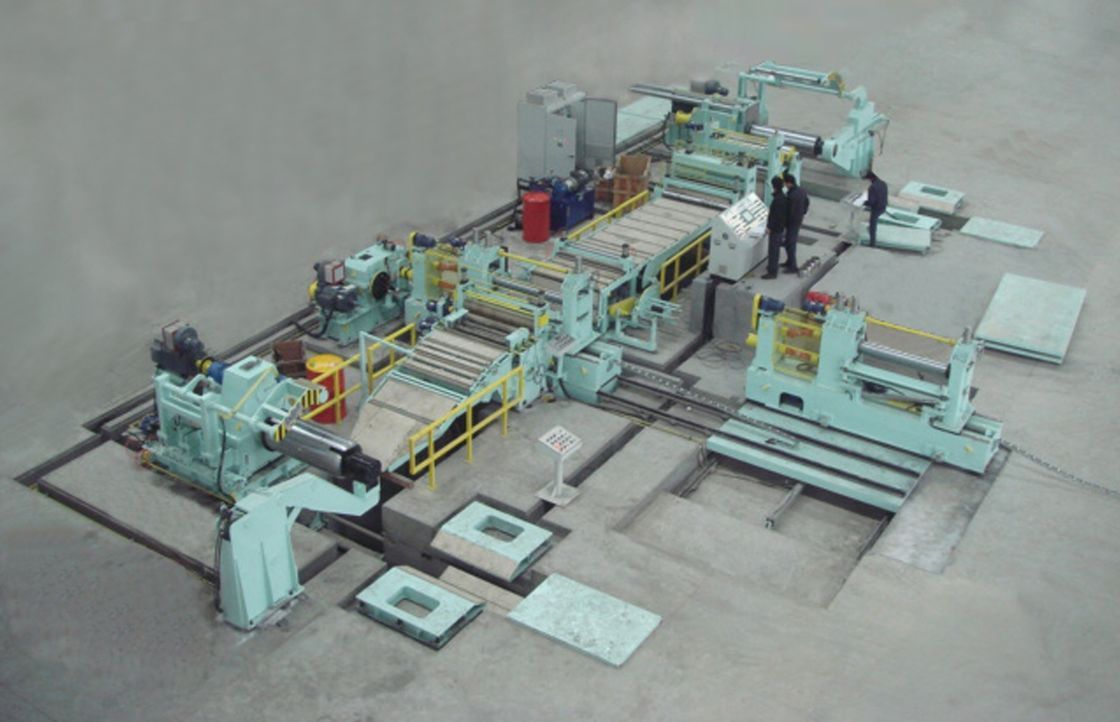

Large Image :  Silicon Steel Lamination Slitting Machine Frequency conversion control

Product Details:

Place of Origin: China
Brand Name: WKH
Certification: ISO9001:2000,CE
Model Number: N/A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: Strong wooden package in accordance with buyer’s requirements
Delivery Time: 30~180 days
Payment Terms: L/C, T/T, D/P
Supply Ability: 1~30 sets per month
We are Good Supplier of Silicone Rubber Bands from China
Silicone Rubber Bands from China

Silicone Rubber Bands

The present invention relates to a manufacturing method for a rubber band, comprising preparing a production raw material: mixing and stirring by weight percent 50%-80% vinyl-terminated polydimethylmethylvinylsiloxane, 19%-40% silica and 1%-10% hydroxy-terminated polydimethylsiloxane into a paste ready for use; feeding the aforementioned production raw material into forming molds to produce rough rubber bands; soaking the rough rubber bands in a surface treatment solution for a certain time p

Detailed Product Description
High Light:

Coil Winding Machine

,

Filament Winding Machine



Silicon Steel Lamination Slitting Machine Frequency conversion control







Description:



1. Decoiler



** The motor will drive it running and help the decoiler to feed the material to the next device

** It can expand and shrink to meet the different coil Inner diameter's requirement.

** It is one of the important part of the slitting line

** Capacity: 5T



2. Slitter



** At the entry part, it is equipped with the side guide device to prevent the sheets not directly go into the  slitter

** Steel slitting line' s slitter part designed with the bracket movable structure to make it easy to adjust the  slit width

** It should be equipped with the blades, shim , bakelite plates or the rubber band to make the slitting  possible





3. Scrap winder



** In the slitting line it is designed to receive the waste materials on both sides

** And a shaft with the 5.5 KW motor to wind the material with speed adjustment





4. Tension stand



** Two shafts will be equipped with spacers to divid the strips one by one

** The press device with felted woolen will create the first tension part to ensure the tight and even  recoiling quality

** The press part is adjustable as per the various thickness requirements





5. Recoiler



** the press arm will divide the strips one by one and create the tension with the tension stand

** The motor makes the speed adjustable

** Recoiler is the most importmant part of the whole steel slitting line.





Layout of the whole line

Decoiler----Pit 1------Slitter-----Scrap WInder------Pit 2------Tension stand------Recoiler





Applications:



steel coil slitting line called slitting machine which is used to slit the big coil into small coils by doing the  longitudinal shearing for the steel coils.





Specifications:



No.

Name



parameters

1.

Control model



Frequency conversion control

2.

material



Carbon Steel coil

3.

thickness

mm

0. 3-1.5

4.

Width(max)

mm

1250

5.

Coil ID

mm

480-520

6.

Coil OD

mm

1200

7.

Weight

T

5

8.

Blade specification

mm

Φ120×Φ320×10

9.

Material of blade



9CrSi

10.

Line speed

m/min

≤40

11.

Power of decoiler



5.5

12.

Power of slitting machine

kw

11

13.

Power of recoiler

kw

22

14.

Quantity of strips can slit (Max)

strips

10
