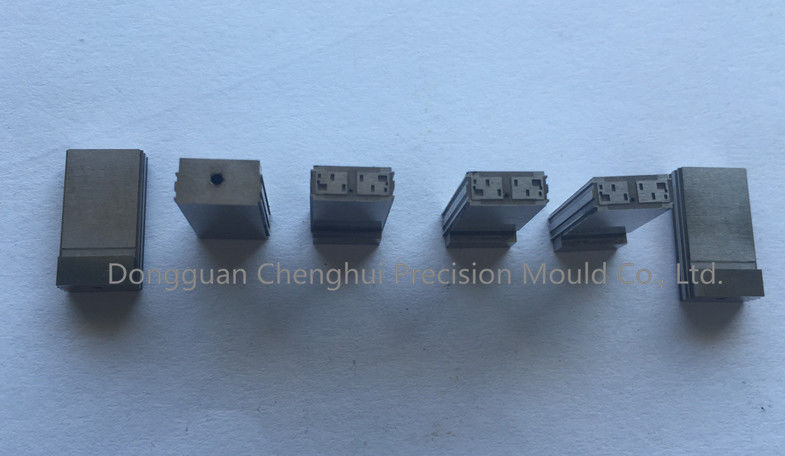

SKD11 , SKH9 Connector Mold Parts / Injection Mold Parts 58 - 60 HRC Hardness

SKD11 , SKH9 Connector Mold Parts / Injection Mold Parts 58 - 60 HRC Hardness

1. Material using : imported SKD11,SKH9,Elmax,Viking, or others

2. Size ; According customer requirement

3. Hardness: 58-60 HRC

4. Mold insert : for connector mold

5. EDM and surface Grinding Precision : within 0.005mm

6. Surface Roughness for EDM reach to Ra0.1 even mirror surface

7. WEDM Angle Clearness<0.05

8. OEM and ODM service

9. MOQ:1 PC acceptable

About us

We manufacture and supply precision mold parts for injection molds(cavities, cores, inserts, pins, base, sliders, spare parts)and progressive die parts, like punches  and stripper to businesses from various industries, including Automotive, Electrical, Electronic,Medical, Aviation. Approved by ISO9001:2008.

Our quality, absolute accuracy and short delivery times will help your business, by parts with less than 1.0μm surface roughness and accuracy of less than ±0.003m E.D.M. and less than 0.3μm surface roughness using the surface grinder.

Quality system

Chenghui Precision Mould use dimensional and optical inspection machine inspect each process tolerance and dimension; guaranteeing customer qulity .

Chenghui Precision Mould operate ISO 9001:2000 system;  committing to continuous process improvement eliminating variability and inconsistency within the manufacturing process.

Advantage

Chenghui Precision Mould have more than 60 professional and skilled technicians ;10 master of optical profile grinding ,CNC milling, mirror EDM, wire EDM who were more than five years experiences working in foreign-owned enterprise. These talents ensure our product satisfy customer requirement quickly and our process skills are be industry leadership in mould machining field such as EDM and PG optical profile grinding.

Chenghui Precision Mould specialize in precision led lead frame mould , precision progressive stamp mould and precision plastic mould part.

Chenghui Precision Mould provide advanced R&D service and experienced engineer ,your inquire would get prompt responses within 24 hours.

Sodick wire-cutting EDM and one Sodick oil cutting EDM machines ensure general tolerance within 0.005mm, flatness,verticality,and linearity within 0.002mm.

 High Speed CNC (Switzerland Mikron 500LP ) milling machines that are mainly used to make the electrodes and precise cubic curve product, which precision reach to 0.002mm. And our program master design the electrode and the CNC workshop produces it in house, which greatly ensures EDM precision, quality and fast delivery

Sodick EDM machine ensure EDM process precision within 0.005mm.For special surface roughness, Chenghui Precision Mould could handle using the Sodick EDM machines, which reach to from Ra 0.15 to mirror surface.
