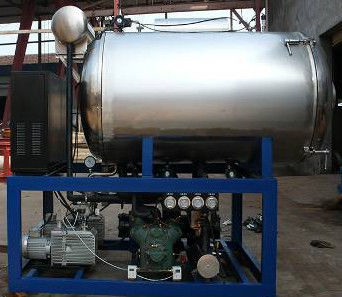

5 ㎡ Steel 316 Vacuum Freezing Dryer For Food Nutrition , Flower
Quick Detail:
The vacuum freeze-drying is a advanced method of dehydration, whose process takes advantage of the principle of ice crystal’s lyopilization under purified vacuum condition, in which the water nice form on the frozen goods can be directly lyophilized into steam without melting in advance, thus the goods are dried .
Description:
Food industry:
Vacuum freeze-drying can be used in the drying vegetables, meet, fish, condiment instant food and specialties, keeping the food’s original fresh look, smell, taste, shape. The freeze-dried products can regain water competently can be easily longer stored and less-costly transported .
Nutrition and health care industry:
Vacuum freeze-dried nurture products such as Royal jelly, ginseng, terrapin, rainworm etc are more natural and original.
Pharmaceutical industry:
Vacuum freeze-drying can be used in the drying of Chinese and western leechdom such as blood serum, blood plasma, bacteria, enzyme, antibiotics, hormone etc.
Biomedicine research:
Vacuum freeze-drying can long-term store blood, bacteria, artery, bones, skin, cornea, nerve tissue and organs etc which can regain water and rebirth competently.
Others:
Producing adiabatic ceramic in space industry; storing of specimens and relic in archaeological industry.
Applications:
Food industry
Nutrition and health care industry
Pharmaceutical industry
Biomedicine research
Do not send fat: rehydration speed, do not have a long time system, saving time and effort.
Light weight: low water content, no salt, no added.
Pure natural: to maintain the natural fresh sea cucumber color, smell, taste, shape and nutritional content.
Eat new ways: you can eat dry, you can also re-cold salad, porridge and cooking.
Easy to store: Due to low water content, pathogenic bacteria can not survive, can be long-term preservation.
Freeze-dried sea cucumber Advantages: After freeze-dried sea cucumber water content will not exceed 3%;
Do not add any other ingredients, consumers distinguish between good, frivolous ingredients.
Sea cucumber nutrition is not lost, so that the key nutrients in the sea cucumber and more retained more than 30%.
Due to complete dehydration, the product can be stored at room temperature for more than 5 years without adding any preservatives.
Specifications:
|
ZG-5㎡
|
|
Construction
|
Technical parameters
|
Remark
|
|
Base Structure
|
|
Effective area of shelves
|
5㎡
|
|
|
Input capacity
|
50kg
|
|
|
Maximum Condenser capacity
|
60Kg/batch
|
|
|
Power supply
|
380V/50Hz/3P
|
Could be changed to follow customer’s country voltage
|
|
Power consumption
|
23.75Kw
|
380V/50Hz
|
|
Cooling Water
|
5T/Hr (T＜28℃, P=0.1-0.15MPa)
|
Recyclable
|
|
Machine size(L*W*H)
|
2700*1200*2430mm
|
subject to the actual design
|
|
Main Structure
|
Unity type
|
|
|
Weight
|
3000 Kg
|
|
|
Drying Oven
|
|
Dry Chamber Material
|
SUS304/ 6mm thick
|
|
|
Dry Chamber Shape and dimension
|
Cylinder φ1100*1100
|
|
|
Door lock
|
Hand knob lock
|
|
|
Door Open direction
|
Right to left
|
Decided by customer
|
|
Open angle
|
＞110°
|
|
|
Door material
|
SUS304
|
|
|
Surfaceness
|
Ra≤0.5um
|
|
|
Observation window
|
Frost-resistant glass
φ220mm,δ25~27
|
Installed on the front
|
|
Door seal
|
Medical o section silicone rubber seal
|
|
|
Temperature sensor
|
T-type thermocouple
|
|
|
Shelves
|
|
Shelf material
|
SUS304
|
|
|
Shelf Surfaceness
|
Ra≤0.5um
|
|
|
Shelf quantity.(pc)
|
7+1 layers
|
The top layer of the shelves is temperature compensation
|
|
Stainless steel tray
|
Hangzhou Kassel 395*445*30/ 2mm thick
|
28pcs
|
|
Distance between shelves
|
75 mm
|
|
|
Shelf dimension(L*W*H)
|
800*895*15mm
|
|
|
Shelf lowest temperature
|
-55℃
|
|
|
Shelf highest temperature
|
+70℃
|
|
|
Shelf Cooling Rate
|
+20~-40℃≤60min
|
No-load
|
|
Heating power consumption
|
8 Kw/380V/50Hz
|
|
|
Shelf fence
|
prevent the tray cross over the shelf
|
|
|
Condenser
|
|
Condenser Material
|
SUS304/ 6mm thick
|
|
|
Shape and dimension
|
cylinder φ1100*600
|
at back of dry chamber
|
|
Coil pipe material
|
SUS304
|
|
|
Coil shape
|
Circular coil pipe
|
|
|
Coil pipe water catching area
|
≥6㎡
|
|
|
Refrigerant
|
R404a
|
|
|
Condenser lowest temperature
|
-65℃
|
|
|
Cooling rate
|
+30~-40℃≤30min
|
|
|
Observation Window
|
Frost-resistant glass
φ100mm,δ25~27
|
Installed on the side
|
|
defrosting method
|
spray + immersion
|
|
|
Temperature sensor
|
T-type thermocouple
|
|
|
Refrigerating Unit
|
|
Compressor.
|
BITZER 12.2HP two-stage motor
|
1set
|
|
Power consumption
|
9.15Kw
|
|
|
Refrigerant
|
R404a
|
|
|
Shelf temperature uniformity
|
+/-1℃
|
|
|
Oil separator
|
Jinhao
|
1set
|
|
Oil Filter
|
Emerson (America)
|
1set
|
|
Oil pressure differential controller
|
Fengshen
|
1set
|
|
Gas-liquid separator
|
Emerson (America)
|
1set
|
|
Dehumidification drying filter
|
Emerson (America)
|
1set
|
|
Manometer
|
Jinhao
|
3set
|
|
High/low voltage protection relay
|
Danfoss (Danmark)
|
1set
|
|
water-cooled condenser
|
Jinhao
|
1set
|
|
Corrugated Damping Pipe
|
Jinhao
|
2pcs
|
|
Manual stop valve
|
Jinhao
|
1set
|
|
Refrigerating solenoid valve
|
Emerson (America)
|
1set
|
|
Expansion valve
|
Danfoss (Danmark)
|
1set
|
|
Red Copper Pipe
|
φ16,φ12,φ10
|
|
|
Refrigeration Return-pipe
|
φ38 Stainless steel seamless pipe
|
|
|
Vacuum System
|
|
Vacuum Pump
|
LEYBOLD D30C 1.5KW
|
2sets
|
|
Roots vacuum pump
|
LEYBOLD WAU251 1.1KW
|
1set
|
|
Corrugated pipe
|
Φ76
|
Vacuum Pipe Shock Resistance
|
|
Pump air flow
|
100L/S
|
|
|
Power consumption
|
4.1Kw
|
|
|
Butterfly valve
|
GI-63
|
|
|
vacuum solenoid valve
|
DDC-40
|
Automatic open or close with vacuum pump
|
|
vacuum gauge
|
ZJ-54D
|
|
|
Final vacuum
|
≤1Pa
|
No-load
|
|
Pumping rate
|
From the atmospheric pressure dropped to 133 Pa≤20min
|
|
|
Circulation system
|
|
Pipe material
|
304 seamless pipe
|
|
|
Circulation pump
|
Denmark Grundfos 1.1KW
|
1set
|
|
Power consumption
|
9.1 Kw
|
|
|
Ball valve
|
Shanghai DG40
|
Comply with the standard of Q/IAKX002-97
|
|
Circulating fluid
|
Multiple fluid
|
|
|
Heat exchanger
|
(Sweden)
|
1set
|
|
Heating rate
|
＞1℃/min
|
|
|
Heating method
|
Electric Heating pipe 4KW*2pcs 8Kw
|
|
|
Control method
|
Manual/Auto control
|
|
|
Heater dimension
|
Φ219×300
|
|
|
Circulating fluid tank dimension
|
￠300*400
|
|
|
Control system
|
|
System Monitoring Software
|
Hangzhou Kassel
|
1set
|
|
Vertical control cabinet
|
Hangzhou Kassel
1100×400×600
|
Control, record
|
|
PLC
|
SIEMENS CPU 226 CN AC/DC/relay
|
1set
|
|
Thermocouple extension module
|
SIEMENS EM 231 CN 4(4 TC)
|
1set
|
|
Analog input module
|
SIEMENS EM 231 CN(4 AI)
|
1set
|
|
HMI
|
Taiwan Panel Master PT070
|
1set
|
|
Cable of HMI and PLC
|
Hangzhou Kassel
|
|
|
Constant current
|
Hangzhou Kassel
|
1
|
|
Switching Power Supply
|
Taiwan MW companies / 24V/5V
|
24V 1pc
5V 1pc
|
|
Temperature sensor
|
T-type thermocouple
|
|
|
vacuum gauge
|
Shandong ZJ-54D
|
2
|
|
AC contactor
|
SCHNEIDER
|
|
|
Air-break
|
SCHNEIDER
|
|
Competitive Advantage:
1) Our products are designed and produced completely according to European standard, which are oriented as high efficiency and high quality.
2) We have applied the CE, ISO9001 certificate for our products and get the good technical test report, who is the international famous third party test institute.
3) All our products will be tested 100% during production and will be double checked before loading.
