Two Shot MoldingA process for injection molding a composite of rigid thermoplastic and soft thermoplastic, the soft thermoplastic including a cavity established with pressurized assist gas or an assist liquid. The process includes the steps of: injecting a hard molten thermoplastic into a first mold chamber; injecting a soft molten thermoplastic into a second mold chamber; establishing communication between the first chamber and the second chamber so that the rigid thermoplastic and soft thermoplastic integr |
| High Light: | two shot injection molding,overmolding injection molding |
||
|---|---|---|---|
Two Colors Plastic Rotational Molding , Overmold Two Shot Injection Molding
| Part Name | Plastic Material | Dimension mm | Cavity | Cavity/Core | Mold standard | Gate type | Remarks |

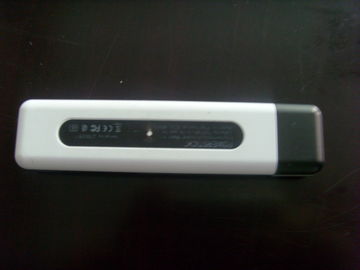

| USB covers | ABS PC | 93*26*5.2 | 1+1+1*1+1+1 | 1.2343 (48-52HRC ) | DME | pin point gate | 8 sliders, rotational mold, 2 interchangeable inserts |
With the help of CMM, projector, and some other measuring tools and equipments and team members conscientiousness,we can guarantee the mold quality by inspecting in-coming material ,manufacturing process and samples.
Our main QC Process are as follows :
1. Customer’s Mold Specification Sheet Check
2. Mold Design Control
3. Mold Steel Hardness Inspection
4. Mold Electrodes Inspection
5. Mold Core and Cavity Steel Dimension Inspection
6. Mold Pre-Assembly Inspection
7. Mold Trial Report and Samples Inspection
8. Final Full Inspection prior to shipment
9. Mold Package Inspection
Mould material: P20 steel, H13, NAK80, 2344, 2343, S136, 420 etc .
Runner Cold runner: Hot runner: Yudo/DME/HASCO
Certificate: ISO
Standard: HASCO, DME, LKM
Specification drawings:
Pro/E, Auto CAD, Solidwork, CAXA UG, CAD/CAM/CAE.
Precision machining :
CNC, milling machine, drilling machine, numerical lathe, all types of lathe
Surface finish process: polishing, texturing sand blasting, heat treatment, painting, electroplating, mirror polishing .
Shaping mould:injection mould and die-casting mould
Mould life: 1-2 million shots
What we can provide :
1) Mold making (die-casting and injection). 70% of the molds to export to all over the world
2) Injection and die-casting
3) Rubber & silicone mold and molded parts
4) Silk screen & pad printing and simple assembly
5) Vacuum forming
6) Prototype
7) Rapid mold
