Multi Cavity MouldA multi-cavity mold includes a female die and a male die for molding products with the female die. The female die core includes a female die body and a number of female die cores received in the female die body. The male die consists of a male die body, a number of male die cores each corresponding to one female die core received in the male die body, and an ejection member. The male die body consi |
| Material:: | PE, PET, ABS | Feature:: | Energy Saving |
|---|---|---|---|
| Clamping Force:: | 280Tons | Application:: | Household, Industrial, Auto |
| High Light: | ABS Injection Molding Machine,servo motor injection moulding machine |
||

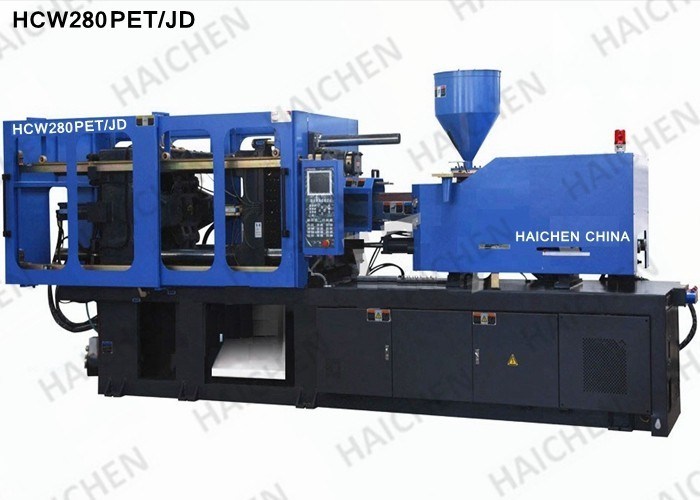

HCW280PET JD Hydraulic PP Plastic Injection Moulding Equipment With Multi Cavities
Quick Detail:
HCW280PET/JD Servo motor injection molding machine is for normal type plastic material injection, e.g. PC, PP,
PE, Nylon, A.B.S. PVC etc. This machine is mainly used to produce small industrial parts, household appliances
and other plastic products.The machine is with servo motor to save power, compare with
standard machine, according to specific products, the servo motor machine can save power 30% to 70%.
Condition: New
Type: Injection Molding Machine
Style: Horizontal
Brand Name: HAICHEN
Plastic Type: Thermoplastic
Place of Origin: Ningbo China
Clamping Force: 2800 KN
Opening Stroke: 590 mm
Description:
HCW280PET/JD Servo motor injection molding machine is the type of fully-automatic machine,
being provided with high efficiency, high reliability, high speed, low noise, low power
consumption and other advantages Machine main components adopt world famous brand, e.g.:
Servo motor configurations:
• PLC: TECHMATION CONTROLLER(Taiwan)
• AC Contactor: SIEMENS(Germany)
• Travel switch: SCHNEIDER(FRANCE),
• Transducer: NOVOTK (Germany)
• Proportional Valve: HNC(TAIWAN)
• Oil pump: Germany ECKERLE
• Directional Valve: VICKERS(USA)
• High-pressure pipe line: GOOD YEAR (USA)
• Servomotor: Italy PHASE
Specifications :
| INTERNATIONAL CLASS NO | HTW280/PET | |||
| B | C | |||
| INJECTION UNIT | ||||
| Screw diameter | mm | 60 | 65 | |
| Screw L/D ratio | L/D | 24 | 24 | |
| Shot volume(theoretical) | cm3 | 845 | 990 | |
| Injiection weight(PET) | g | 915 | 1075 | |
| Injection rate | g/s | 319 | 336 | |
| Injection pressure | Mpa | 170 | 145 | |
| CLANPING UNIT | ||||
| Clamping force | kN | 2800 | ||
| Open stroke | mm | 590 | ||
| Space between tie bars(W×H) | mm | 610×610 | ||
| Max.Mold height | mm | 630 | ||
| Min.Mold height | mm | 200 | ||
| Ejector stroke | mm | 150 | ||
| Ejector force | kN | 70 | ||
| OTHERS | ||||
| Max.Pump pressure | MPa | 16 | ||
| Pump motor power | kW | 30 | ||
| Heating power | kW | 32.8 | 36 | |
| Machine dimension(L×W×H) | m | 6.1×1.7×2.3 | ||
| Oiltank cubage | L | 500 | ||
| Machine weight | t | 9 | ||
Competitive advantages:
HCW280JD servo energy-saving injection molding machine is equipped with high performance servo
motor controlling system, the machine’s output power can vary in accordance with the loading
changes, which reduce energy consumption and noise.
