Plastic Injection MoldSolder mask is exposed to the pads used, it is often said that the green oil, oil is actually digging holes in the green, the green oil does not need to cover the pads and other exposed areas. Proper cleaning can get a suitable surface features. HASL solder coating HAL (commonly known as HAL) process is first dipped on the PCB flux, then dipping in molten solder, and then |
| Shaping Mode: | Plastic Injection Mould | Product Material: | Steel |
|---|---|---|---|
| Product: | Mould | Runner System: | Hot / Cold Runner |
| Mold Base: | LKM | Mold Material: | 738H 718H NAK80 S136 2344 |
| Modl Life: | 500,000~1,000,000 | Design Software: | Solidwork, UG Etc |
| Design Ability: | Free Design Service | Samples Leadtime: | 1-3 Days For Prototype |
| Shipment: | By Sea Or Air , Or Express | ||
| High Light: | injection molding process,plastics injection mould |
||

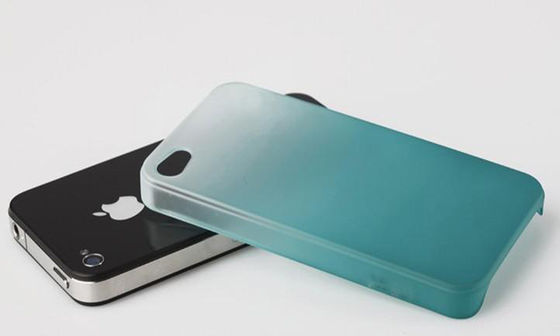

Moble Shell Mould Electronics Products Mould Phone Shell Molds
| Name | Moble Shell Mould |
| Mould standard | HASCO,DME,MEUSBURGER,JIS,CHINA LKM Standard, etc |
| Mould base |
LKM&Hasco&DME standard (A,B plate 1730,2311,2312, P20 ), etc |
| Material main core and cavity insert | DIN2312,2738,2344,718,S136,8407,NAK80,SKD61,H13, etc |
| Hardness of steel | 46~56HRC |
| Material for Slider ,Lifter and all sub insert use | 1.2767 HRC |
| Cavity | Single-cavity ,Multi-cavity |
| A surface request: | EDM & High Polish |
| Gate | Cold runner,Yudo/DME/HASCO/Synventive Hot runner |
| Mould life time | 500000~+1,000,000 shots |
| Quality | ISO900:2008 |
| Product material | PA,PA6/6+GF,ABS,POM,PC,PP,PET,TPE,PVC,HDPE etc |
| Export country | Japan, Europe,USA,Mexico,Australia ,Middle-east ,Asia etc |
| Value-added service | Polish,texture,painting,screen printing,turnkey project |
Custom Your Own Mould
Mould Trade Process :
| 1.Quote | According to sample,drawing and specific requirement. | ||||||||
| ↓ | |||||||||
| 2.Discussion | Mold material,cavity number,price,runner,payment,etc. | ||||||||
| ↓ | |||||||||
| 3.S/C Signature | Approval for all the items. | ||||||||
| ↓ | |||||||||
| 4.Advance | Pay 50% by T/T | ||||||||
| ↓ | |||||||||
| 5.Product Design Checking | We check the product design.If some position is not perfect,or can not be done on the mould,we will send customer the report. | ||||||||
| ↓ | |||||||||
| 6.Mould Design | We make mould design on the basis of confirmed product design,and send to customer for confirmation. | ||||||||
| ↓ | |||||||||
| 7.Mold Tooling | We start to make mold after mold design confirmed. | ||||||||
| ↓ | |||||||||
| 8.Mold Processing | Send report to customer once each week. | ||||||||
| ↓ | |||||||||
| 9.Mold Testing | Send trial samples and try-out report to customer for confirmation . | ||||||||
| ↓ | |||||||||
| 10.Mold Modification | According to customer'feedback. | ||||||||
| ↓ | |||||||||
| 11.Balance Settlement | 50% by T/T after the customer approved the trial sample and mould quality. | ||||||||
| ↓ | |||||||||
| 12.Delivery | Delivery by sea or air.The forwarder can be designated by your side. | ||||||||
