Double Injection MoldA parison for blow molding is applied to a core rod by successive injectionoperations in different injection molds. The material for the first layer is injected into the end of the mold cavity remote from the neck portion of the core rod, in the usual manner. The second layer is injected into the second injection moldcavity adjacent to the neck of the core rod to flow over the first layer in a direction from the cooler part of the first layer toward the hotter part. The twolayer parison is th |
| Product Name: | Dispensing Double Cartridge 600ml , Plastic Ab Glue Cartridge | Length: | 215mm |
|---|---|---|---|
| Main Raw Material: | Pe | A Part Diameter: | 50mm |
| Cartridge Type: | Two-component | Function: | For Packing AB Adhesive, Sealant, Epoxy Etc. |
| Color: | White | ||
| High Light: | adhesive cartridge,epoxy cartridge |
||

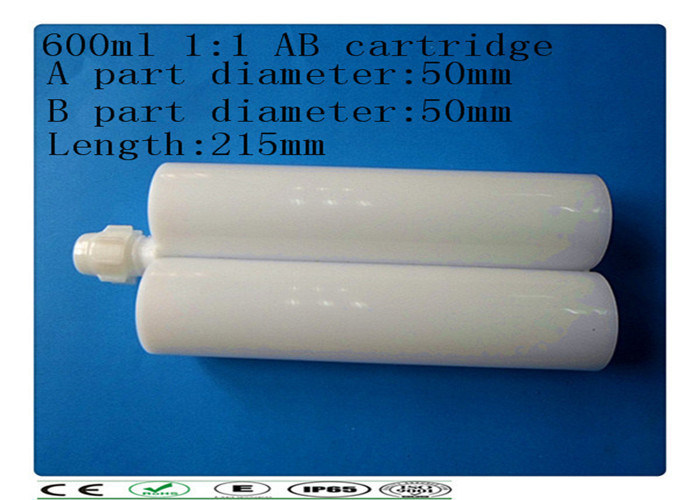

Dispensing Double cartridge 600ml , Plastic AB Glue Cartridge
Specifications:
Item no.: 600ml 1:1 two component cartridge with pistons & cap
Material: Pe
Minimum wall thickness: ≥ 2mm
Part A Diameter :50mm
Part B Diameter : 50mm
Length: 215mm
Ratio: 1:1
| AB component cartridge | ||||
| Product NO | ratio | A diameter | B diameter | length |
| Vs-50-11 | .1:1 | 21.5mm | 21.5mm | 100mm |
| Vs-50-12 | .2:1 | 25mm | 18mm | 100mm |
| Vs-50-14 | .4:1 | 25mm | 14mm | 100mm |
| Vs-50-110 | .10:1 | 25mm | 10mm | 100mm |
| Vs-50-11r | .1:1 | 22mm | 22mm | 125mm |
| Vs-50-12r | .2:1 | 25mm | 18mm | 125mm |
| Vs-50-14r | .4:1 | 31.5mm | 125mm | |
| Vs-50-110r | .10:1 | 31.5mm | 11mm | 125mm |
| Vs-200-11 | .1:1 | 37mm | 37mm | 150mm |
| Vs-235-110 | .10:1 | 50mm | 18mm | 150mm |
| Vs-345-110 | .10:1 | 50mm | 18mm | 215mm |
| Vs-360-15 | .5:1 | 50mm | 25mm | 215mm |
| Vs-385-13 | .3:1 | 55mm | 33mm | 160mm |
| Vs-400-11 | .1:1 | 45mm | 45mm | 185mm |
| Vs-450-12 | .2:1 | 50mm | 37mm | 215mm |
| Vs-585-13 | .3:1 | 55mm | 33mm | 235mm |
| Vs-600-11 | .1:1 | 50mm | 50mm | 215mm |
| Vs-1500-11 | .1:1 | 79mm | 79mm | 215mm |
Suggested Application Area:
Construction, Concrete, Industry, Hardware, Anchor Fastener, Waterproof,
Automotive, Railway, Tunnel, Appliances, Aerospace, Maintenance and Repair
Marine, Floor, Chemical, Paint etc
