Household Appliance MouldThe utility model discloses an injection mould for a |
High Light: | home plastic moulding,home plastic molding |
---|

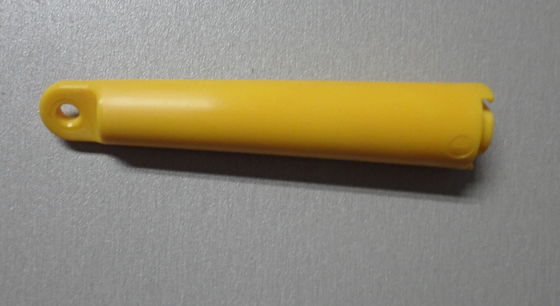

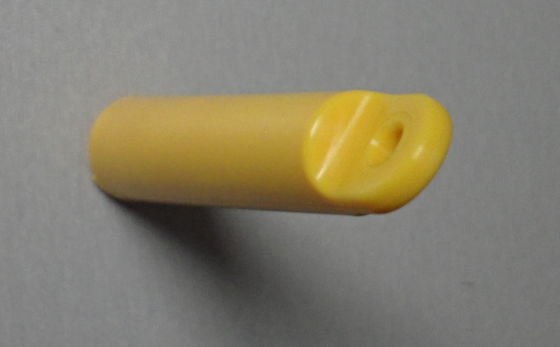

DME Cleaner Home Appliance Plastic Injection Molders For Cover / Panel
Part Name | Plastic Material | Dimension mm | Cavity | Cavity/Core | Mold standard | Gate type | Remarks |
cleaner Duse | PA6 | 21*21*104 | 1*1 | 718H | DME | sub gate | 1 hydraulic cylinder |
Our main QC Process are as follows :
1. Customer’s Mold Specification Sheet Check
2. Mold Design Control
3. Mold Steel Hardness Inspection
4. Mold Electrodes Inspection
5. Mold Core and Cavity Steel Dimension Inspection
6. Mold Pre-Assembly Inspection
7.Mold Trial Report and Samples Inspection
8. Final Full Inspection prior to shipment
9. Mold Package Inspection
We are glad to quote your own design. Please send us RFQ details including
1) Drawings , 2D and 3D.
2) Cavities. If hot runner is required, please inform the hot runner brand.
3) plastic material
4) mold standard (Europe / USA with Hasco/ DME, china with LKM)
5) Tooling life and steel type
Key Advantage:
1. Export (HASCO,DME, MISUMI)mold making for over than 15 years
2. Reasonable price and competitive lead time . For urgent cases, we can cooperate with overtiming to catch up customer's requirement on delivery time.
3. Fluent English communication for both business and engineering issues.
4. Gear precision availability.
5. Up to 20 Tonnage / 2m x 1.6m mold size
6. GE and Philips qualified factory.
7. sales coordinator and project team high stability.
8. Plastic injection mold and molded parts are both available.
Plastic Injection Mould Service Process:
1. RFQ for free
↓
2. quotation and detailed Discussion
Mould material,cavity number,price,runner,payment,etc.
↓
3. Order placed with final 3D.
↓
4. DFM and Design mould
We will send mould design to customer for confirmation
↓
5. Mould manufacturing
We start to process mould after mould design confirmed
↓
6. schedule report
Send pictures and weekly schedule report to customer to let customer know what we are doing
↓
7. Mould trial
sample submission with inspection report of trial shots
↓
8. sample approval and mold Delivery
Ship mould after mould quality confirmed.
Hitop Mold is the one stop shop mold maker in China with over than 15 years mold making experience. Hitop Mold offers integrated capabilities in design ,prototyping ,mold making ,injection molding ,die-casting and simple assembly to take your initial concept to commercialization . |
Hitop Industrial(HK) Co., Ltd. Mold check list |
|
Customer mold no |
|
Mold base and steel according to requirement | |||||||||
![]() |
|||||||||
Clamping groove | |||||||||
Lifting hole and lifting bar | |||||||||
Pry slot | |||||||||
Lock block | |||||||||
Counter | |||||||||
Screw and dowel pin | |||||||||
Mold remark on mold base
|
|||||||||
Add cutting for all the plates | |||||||||
Add chamfer on mold base corner | |||||||||
Clear the sharp point | |||||||||
KO position | |||||||||
KO hole size = |
|||||||||
Diameter of Locating ring = |
|||||||||
Gate Radius = |
|||||||||
Ejection system | |||||||||
Return by spring | |||||||||
Ejection system moving smoothly | |||||||||
Locking for ejector pin | |||||||||
ejector pin no on ejector plates | |||||||||
Ejector pin early return system | |||||||||
Check water leakage | |||||||||
Cooling water line No | |||||||||
Water nipple assembly , standard and type no = /
|
|||||||||
![]() |
|
||||||||
Core hardness: Hrc cavity hardness: Hrc |
|||||||||
Engraving hardness on core , cavity , inserts | |||||||||
Engraving of cavity no | |||||||||
Engraving of P/N , material , recycle logo | |||||||||
Dator code | |||||||||
Surface finish | |||||||||
Remove EDM mark on surface | |||||||||
Texture = |
|||||||||
Air venting | |||||||||
plating: | |||||||||
![]() |
|||||||||
Wearing plate and oil groove | |||||||||
Slider can move smoothly
|
|||||||||
Angle pin and wedge fit proper | |||||||||
Guiding pin&bush assembly | |||||||||
Check shut-off place | |||||||||
Check parting line | |||||||||
Pre-compression of support pillar | |||||||||
Polishing of gate and runner | |||||||||
Check dimension of gate and runner | |||||||||
Check the design of cooling well and sprue puller | |||||||||
Hot runner system= |
|||||||||
Heating and check hot runer system | |||||||||
Insulation plate | |||||||||
Mounting box |
