Double Injection MoldA parison for blow molding is applied to a core rod by successive injectionoperations in different injection molds. The material for the first layer is injected into the end of the mold cavity remote from the neck portion of the core rod, in the usual manner. The second layer is injected into the second injection moldcavity adjacent to the neck of the core rod to flow over the first layer in a direction from the cooler part of the first layer toward the hotter part. The twolayer parison is th |
| Style:: | Horizontal | Material:: | PE, PP, A.B.S |
|---|---|---|---|
| Working Principle:: | High Speed, Hydraulic | Clamping Force:: | 900KN |
| High Light: | plastic injection moulding machine,hydraulic injection molding machine |
||

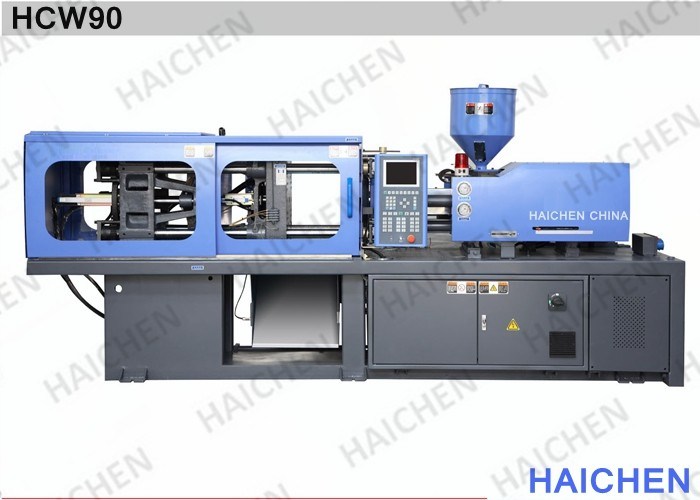

HCW90 Automatic Plastic Injection Molding Equipment With Techmation Controller
Description:
HCW90 injection molding machine is the type of fully automatic machine, being provided with high efficiency, high reliability, high speed, low noise, low power consumption and other advantages.
Machine main components adopt world famous brand, e.g.:
• PLC: TECHMATION CONTROLLER(Taiwan)
• AC Contactor: SIEMENS(Germany)
• Travel switch: SCHNEIDER(FRANCE),
• Transducer: NOVOTK (Germany)
• Proportional Valve: HNC(TAIWAN)
• Oil pump: VICKERS(USA)
• Directional Valve: VICKERS(USA)
• High-pressure pipe line: GOOD YEAR (USA)
--High-precision hydraulic oil filter system, oil temperature /level instant monitoring
--High performance servo motor system, hydraulic components from world famous brand, saves power by 50-80%. Servo motor system with quick response, response time 30-50ms
--Versatile controller with excellent QC monitoring function, temperature detecting function.
Competitive advantages:
1. Heaters adopt ceramic, the using life is double than stainless steel.
2. Machine with oil filter system to ensure hydraulic oil clean , to prolong action valves using life.
3. The machine equipped with 7 inch colorful screen controller, brand Techmation from Taiwan, the controller is with several languages include English, French, Spanish, Portuguese, Russian, Arabic etc.
4. The machine equipped with hydraulic protection
5. The machine equipped with double Hydraulic pulling device
6. The machine equipped with double Air Ejector
7. The machine equipped with single slots on the mold plates
Applications:
HCW90 Plastic Injection Molding Machine is for middle &big industrial parts, household appliances and other plastic products, material PC, PP, PE, Nylon, A.B.S. PVC etc., suitable plastic products weight 106g-170g, mold cavity can be:1 Cavity, 2 Cavities, 3 Cavities, 4 Cavities, 6 Cavities, 8 Cavities, 10 Cavities, 12 Cavities, 16 Cavities
Specifications :
| INTERNATION CLASS NO | HCW90 | ||||
| A | B | C | D | ||
| INJECTION UNIT | |||||
| Screw diameter | mm | 30 | 32 | 35 | 35 |
| Screw L/D ratio | L/D | 23.5 | 22 | 20.1 | 18.5 |
| Shot volume(theoretical) | cm3 | 117 | 133 | 158 | 187 |
| Injiection weight(ps) | g | 106 | 121 | 144 | 170 |
| Injection rate | g/s | 71 | 81 | 97 | 115 |
| Injection pressure | Mpa | 230 | 203 | 170 | 144 |
| Screw pressure | rpm | 225 | |||
| CLANPING UNIT | |||||
| Clamping force | kN | 900 | |||
| Open stroke | mm | 320 | |||
| Space between tie bars(W×H) | mm | 355×330 | |||
| Max.Mold height | mm | 350 | |||
| Min.Mold height | mm | 150 | |||
| Ejector stroke | mm | 90 | |||
| Ejector force | kN | 30 | |||
| OTHERS | |||||
| Max.Pump pressure | MPa | 16 | |||
| Pump motor power | kW | 11 | |||
| Heating power | kW | 7.55 | |||
| Machine dimension(L×W×H) | m | 3.81×1.19×1.77 | |||
| Oiltank cubage | L | 180 | |||
| Machine weight | t | 2.8 | |||
PLATEN SIDE
