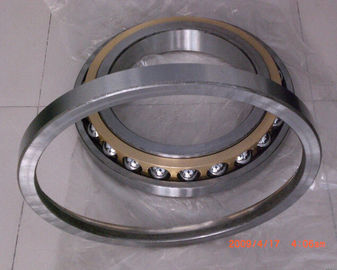

High Precision Angular Contact Ball Bearing Single Row With Brass Cage

High Precision Angular Contact Ball Bearing Single Row With Brass Cage
High Precision Angular Contact Ball Bearing Single Row With Brass Cage

Large Image :  High Precision Angular Contact Ball Bearing Single Row With Brass Cage

Product Details:

Place of Origin: China
Brand Name: TVB/OEM/World-famous brands
Certification: ISO9001
Model Number: QJF1022M

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 1-100USD
Packaging Details: Single Box(White Box/Color Box/Wooden Box)
Delivery Time: Within 3 days
Payment Terms: Paypal/West Union/TT
Supply Ability: 10000PCS
We are Good Supplier of Precision Plastic Mould from China
Precision Plastic Mould from China

Precision Plastic Mould

The utility model relates to a precise plastic helical gear mould. The preciseplastic helical gear mould comprises a fixed mould and a movable mould, and is characterized in that the fixed mould comprises an installation plate, a stripper plate, a fixed mould plate and an embedded piece of a fixed mould chamber, and the movable mould comprises a movable mould base plate fixed by bolts, square iron, a substrate, a movable mould plate and an embedded piece of a movablemould chamber, wherein the

Detailed Product Description
High Light:

small ball bearings

,

double row angular contact bearing



High Precision Angular Contact Ball Bearing Single Row With Brass Cage





Product Description



Angular contact ball bearing uses axially asymmetric races. An axial load passes in a straight line through the bearing, whereas a radial load takes an oblique path that tends to want to separate the races axially. So the angle of contact on the inner race is the same as that on the outer race. Angular contact bearings better support "combined loads" (loading in both the radial and axial directions) and the contact angle of the bearing should be matched to the relative proportions of each. The larger the contact angle (typically in the range 10 to 45 degrees), the higher the axial load supported, but the lower the radial load. In high speed applications, such as turbines, jet engines, and dentistry equipment, the centrifugal forces generated by the balls changes the contact angle at the inner and outer race. Ceramics such as silicon nitride are now regularly used in such applications due to their low density (40% of steel). These materials significantly reduce centrifugal force and function well in high temperature environments. They also tend to wear in a similar way to bearing steel—rather than cracking or shattering like glass or porcelain.

Most bicycles use angular-contact bearings in the headsets because the forces on these bearings are in both the radial and axial direction.



Angular contact ball bearing inter structure & retainer material modification

C: Nominal contact angle of 15 degrees

AC:Nominal contact angle of 25 degrees

B: Nominal contact angle of 40 degrees

M: Solid brass retainer



Angular contact ball bearing mounting

DB: mount in duplex, back to back

DF: mount in duplex, face to face

DT: mount in duplex, tandem



Choice for agular contact ball bearing cage

T:  Phenolic laminated tube

M:  Brass

TN: Engineering plastic mould

High Precision Angular Contact Ball Bearing Single Row With Brass Cage



Packaging & Shipping

High Precision Angular Contact Ball Bearing Single Row With Brass Cage

High Precision Angular Contact Ball Bearing Single Row With Brass Cage



High Precision Angular Contact Ball Bearing Single Row With Brass Cage

Our Services



1.Customer service
Any question to be asked will get response within 24 hours.
Well-trained & experienced staff are to answer all your inquiries in English of course.
Working time: 9:00am ~6:00pm, Monday to Saturday(UTC+8).
2.After-sales service
Before shipment,products will be strictly inspection on our factory QC Process System.Just in case,
there is abnormal.Customer complaint will be handled at first time.

3.Some samples are free



Company Information



Bearing Types: deep groove ball bearings, angular contact ball bearings, self-aligning ball bearings, thrust ball bearings, cylindrical roller bearings,taper roller bearings,spherical roller bearings, thrust roller bearings,needle roller bearings, pillow block bearings, linear bearings, rod end bearings,auto bearings,stamping bearings,miniature bearings, non-standard special bearings, etc.

Bearing Brands: Bearings made in America,Japan,Sweden,Germany,French, etc. could

be offereHigh Precision Angular Contact Ball Bearing Single Row With Brass Cage
