Household Appliance MouldThe utility model discloses an injection mould for a |
Style:: | Horizontal | Material:: | PE, PP, A.B.S |
---|---|---|---|
Working Principle:: | High Speed, Hydraulic | Clamping Force:: | 730tons |
Components:: | Techmation, Schneider, Vickers | Application:: | Household, Industrial |
Highlight: | plastic injection molding equipment,hydraulic injection molding machine |

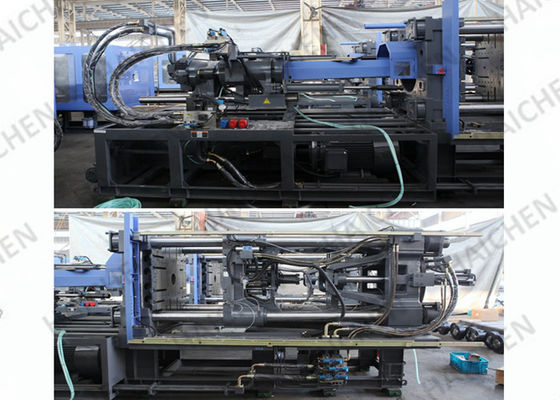

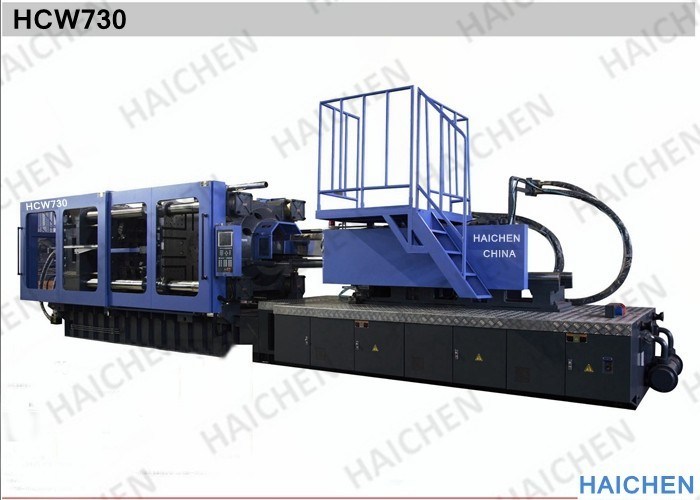

HCW730 Horizontal Plastic Injection Molding Machine for chair
Condition: New
Type: Injection Molding Machine
Style: Horizontal
Brand Name: HAICHEN
Plastic Type: Thermoplastic
Place of Origin: Ningbo China
Injection Weight: 2895/3225/3940/4324 g
Clamping Force: 7300 KN
Opening Stroke: 950 mm
Quick Detail:
HCW730 Plastic Injection Molding Machine is for normal type plastic material injection, e.g. PC, PP, PE, Nylon, A.B.S.etc.This machine is mainly used to produce middle&big industrial parts, household appliances and other plastic products.
Applications:
HCW730 Plastic Injection Molding Machine is for middle &big industrial parts, household appliances and other plastic products, material PC, PP, PE, Nylon, A.B.S.etc., mold cavity can be: 4 Cavities, 6 Cavities, 8 Cavities, 10 Cavities, 12 Cavities, 24 Cavities and 32 Cavities. The injection weight(ps) is 2603g-3888g.
Competitive advantages:
HCW730 injection molding machine is equipped with high performance system, the machine’s output power can vary in accordance with the loading changes, which reduce energy consumption and noise. The motor rotates at lower speed in holding pressure stage, and doesn’t work in cooling time
Description:
HCW730 injection molding machine is the type of fully automatic machine, being provided with high efficiency, high reliability, high speed, low noise, low power consumption and other advantages.
Machine main components adopt world famous brand, e.g.:
• PLC: TECHMATION CONTROLLER(Taiwan)
• AC Contactor: SIEMENS(Germany)
• Travel switch: SCHNEIDER(FRANCE),
• Transducer: NOVOTK (Germany)
• Proportional Valve: HNC(TAIWAN)
• Oil pump: VICKERS(USA)
• Directional Valve: VICKERS(USA)
• High-pressure pipe line: GOOD YEAR (USA)
Specifications :
INTERNATIONAL CLASS NO | HCW730 | ||||
A | B | C | D | ||
INJECTION UNIT | |||||
Screw diameter | mm | 90 | 95 | 105 | 110 |
Screw L/D ratio | L/D | 23.2 | 22 | 19.9 | 19 |
Shot volume(theoretical) | cm3 | 2861 | 3188 | 3894 | 4273 |
Injiection weight(ps) | g | 2603 | 2901 | 3543 | 3888 |
Injection rate | g/s | 574 | 640 | 781 | 858 |
Injection pressure | Mpa | 195 | 175 | 143 | 130 |
Screw pressure | rpm | 115 | |||
CLANPING UNIT | |||||
Clamping force | kN | 7300 | |||
Open stroke | mm | 950 | |||
Space between tie bars(W×H) | mm | 950×950 | |||
Max.Mold height | mm | 960 | |||
Min.Mold height | mm | 400 | |||
Ejector stroke | mm | 280 | |||
Ejector force | kN | 210 | |||
OTHERS | |||||
Max.Pump pressure | MPa | 16 | |||
Pump motor power | kW | 37+37 | |||
Heating power | kW | 56.7 | |||
Machine dimension(L×W×H) | m | 11.43×2.40×3.14 | |||
Oiltank cubage | L | 1000 | |||
Machine weight | t | 37 |
PLATEN SIDE
