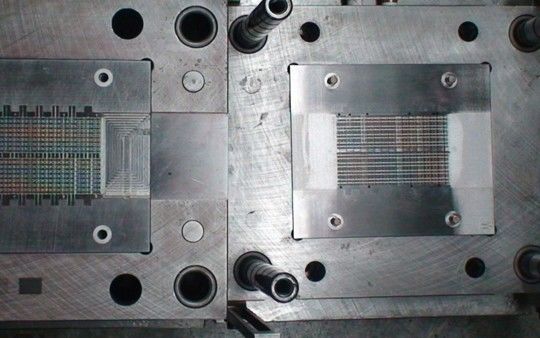

Hot Runner multi cavity mould , LED mould for SMD 2835 lead frame

Hot Runner multi cavity mould ,  LED mould for SMD 2835 lead frame
Hot Runner multi cavity mould ,  LED mould for SMD 2835 lead frame

Large Image :  Hot Runner multi cavity mould , LED mould for SMD 2835 lead frame

Product Details:

Place of Origin: China
Brand Name: Chenghui
Certification: ISO9000:2008

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooded case
Delivery Time: 30days
Payment Terms: T/T
Supply Ability: 20 sets
We are Good Supplier of Multi Cavity Mould from China
Multi Cavity Mould from China

Multi Cavity Mould

A multi-cavity mold includes a female die and a male die for molding products with the female die. The female die core includes a female die body and a number of female die cores received in the female die body. The male die consists of a male die body, a number of male die cores each corresponding to one female die core received in the male die body, and an ejection member. The male die body consi

Detailed Product Description
Material Using: :ELMAX SKD11,SLD,DC53,ASP-23,ASP-60,S45C,S55C.AL7075 Etc . Spare Parts: Standard Parts
Gas Spring: According Customer Requirement Mould Parts Precision: 0.002-0.02mm
Dimension: Depend On Customer's Samples Or Drawing First Trial: 30 Days After Stamping Moulds Drawing Confirmed
Quality Assurance: We Guarantee The Quality. From Raw Material Inspection To Delivery Of The Completed Product Our QC Oversees Every Stage Of Production
High Light:

Precision Injection Mould


plastic injection molds

Precision Plastic LED lead Frame mould for SMD 2835 lead frame


Material using

imported Tungsten Carbide(CD650,V3,KD20) SKD11,SLD,DC53,ASP-23,ASP-60,S45C,S55C.AL7075 etc .

Spare parts

Standard parts

Gas spring

According customer requirement

Mould parts precision



Multiple  cavity

Type of Gate

Hot Runner Gate


Dimension: depend on customer's

First Trial

15 days after stamping moulds drawing confirmed

Quality Assurance

Our QC check key point and size of every producing step and ensure finished mould fit in customer requirement.

Design software


Packaging Detail

Wooden case, pallet, box, carton,



 LED lead Frame mould​ Design and Production process flow


1. Preliminary communication: customer technical communication → get Customer's Samples and better got 2D/3D drawings files.
2. Design details: plastic injection basic information such as injection machine automotive degree, injection ,each product finish time.
3. Design the mould parting line, cavity and core ,punch.

4. Confirmation mould structure and process.

5. Mould part processing.

6. First trial and then send you video ,samples to confirm.

6. Adjust; slightly adjust and modify according customer plan

7. mould packing wood case ship to customer.

8. After sale communication.



Our talent and advanded equipment gurantee LED lead Frame mould​ Design and complete


1. Our experinced desing enginer have been working more than 10 years in the LED lead frame mould.field. Many chiese famous stock comapny use our precision mould.


2. Our talent: 60 professional and skilled technicians and 10 master of optical profile grinding ,CNC milling, mirror EDM, wire EDM.


3. our process skills are be industry leadership in mould machining field such as EDM and PG optical profile grinding.


4. Chenghui Precision Mould specialize in precision led lead frame mould , precision progressive stamp mould and precision plastic mould part.


5. Chenghui Precision Mould have experienced engineer and offer advanced R&D service, your inquire would get prompt responses within 24 hours.


6. Waida PGX-2500SP type optical projector profile grinder ensure processing precision 0.001mm.


7. Sodick wire-cutting EDM and one Sodick oil cutting EDM machines, they ensure general tolerance within 0.005mm, flatness,verticality,and linearity within 0.002mm.


8. ISO 9001:2008 system certificated and operated.


9. Quick response whatever require or aftersale and timly delivery



Quality Management


Using dimensional and optical inspection equimentment, Chenghui Precision Mould ensures that the tolerance and dimensional integrity of each part remains uncompromised.


Chenghui Precision Mould operate ISO 9001:2008 system, committing to continuous process improvement eliminating variability and inconsistency within the manufacturing process.


Data and document record and track.



Cooperate with us


I warmly invite you to visit our factory at your convenience. Audit and evluate our advanced equipment and process  technical, you will find our capability and quality control system. It will also be a win-win for us to develop long-term cooperation.

Contact Details
China Injection Mold Online Market

Contact Person: admin

Send your inquiry directly to us (0 / 3000)
