Injection Mould ToolingThe utility model discloses a boring jig tooling for processing a crosshead hole of an |
| High Light: | medical injection moulding,medical silicone molding |
||
|---|---|---|---|

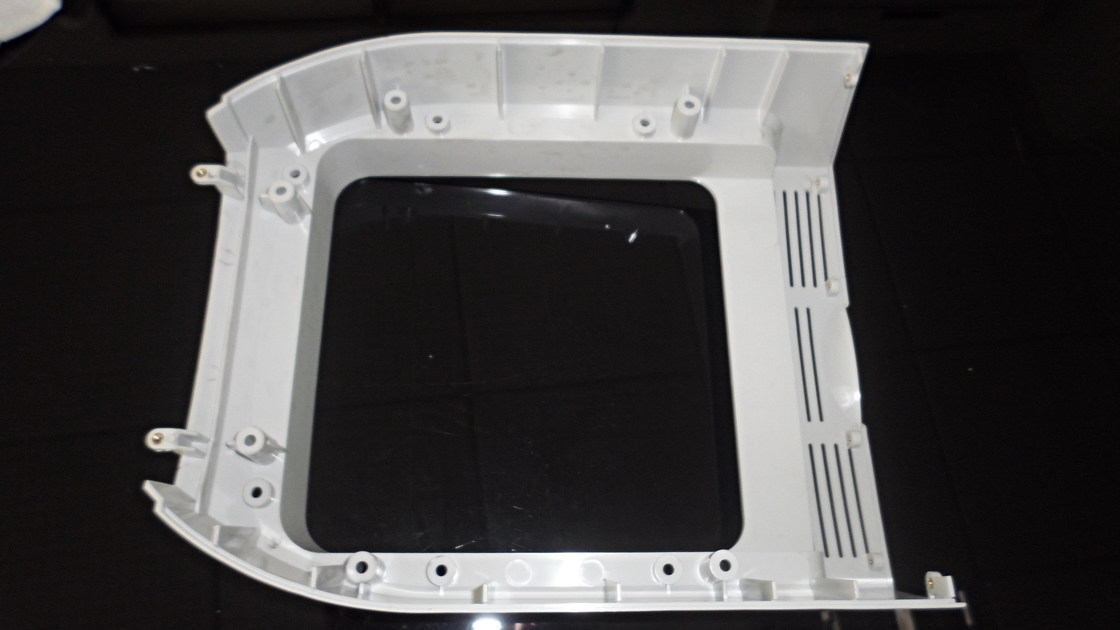

LKM Medical Device Injection Molding , Microscope Cover Injection Moulding Tooling
| Part Name | Plastic Material | part Dimension mm | Cavity | Cavity/Core | Mold standard | Gate type | Remarks | ||
|
|
288*230*90 | 1*1 | P20HH | LKM | sub gate | painting |
For your RFQ , we are glad to provide our best offers. Please share your RFQ details including
1) Drawings
2) Cavties and tooling life, steel type
3) plastic resin / material
4) mold standard (Europe with Hasco/ DME, china with LKM)
We are providing completed DFM analysis before the mold making to avoid the customer modification cost after the mold manufacturing or any design mistakes. DFM details are :
1. Cavity layout
2. Slider and lifter location and movement direction.
3. PL (main parting line, insert parting line, slider parting line)
4. ejector pins
5. gate location and type
6. Draft analysis.
7.possible molding defects such as shrinkage, welding line, scratch and proposed solution.
8. Mold flow for filling ,warpage, cooling ,etc.
Plastic Injection Mould Service Process:
1. RFQ for free
↓
2. quotation and detailed Discussion
Mould material,cavity number,price,runner,payment,etc.
↓
3. Order placed with final 3D.
↓
4. DFM and Design mould
DFM is the presentation of main technical points as well as where we find issues and possible defects which may cause unnecessary modifications .We will send mould design to customer for confirmation
↓
5. Mould manufacturing
We start to process mould after mould design confirmed
↓
6. schedule report
Send pictures and weekly schedule report to customer to let customer know what we are doing
↓
7. Mould trial
sample submission with inspection report of trial shots
↓
8. sample approval and mold Delivery
Ship mould after mould quality confirmed.
Mould material: P20 steel, H13, NAK80, 2344, 2343, S136, 420 etc .
Runner Cold runner: Yudo/moldmaster/incoe/Synventive
Certificate: ISO
Standard: HASCO, DME, LKM Misumi
Specification drawings:
Pro/E, Auto CAD, Solidwork, UG, CAD/CAM/CAE.
Precision machining :
CNC, milling machine, drilling machine, numerical lathe, all types of lathe
Surface finish process: polishing, texturing sand blasting, heat treatment, painting, electroplating, mirror polishing .
Shaping mould:injection mould and die-casting mould
Mould life: 1-2 million shots
With the help of CMM, projector, and some other measuring tools and equipments and team members conscientiousness,we can guarantee the mold quality by inspecting in-coming material ,manufacturing process and samples.
Our main QC Process are as follows :
1. Customer’s Mold Specification Sheet Check
2. Mold Design Control
3. Mold Steel Hardness Inspection
4. Mold Electrodes Inspection
5. Mold Core and Cavity Steel Dimension Inspection
6. Mold Pre-Assembly Inspection
7. Mold Trial Report and Samples Inspection
8. Final Full Inspection prior to shipment
9. Mold Package Inspection
