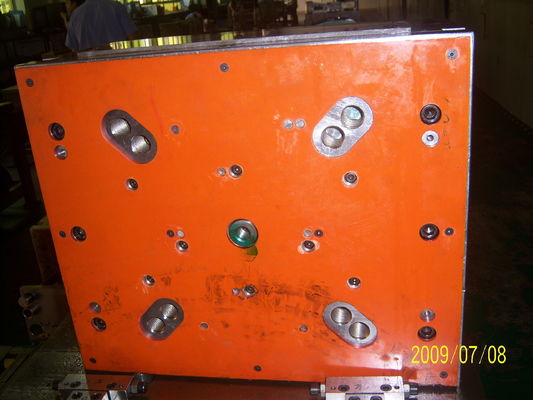

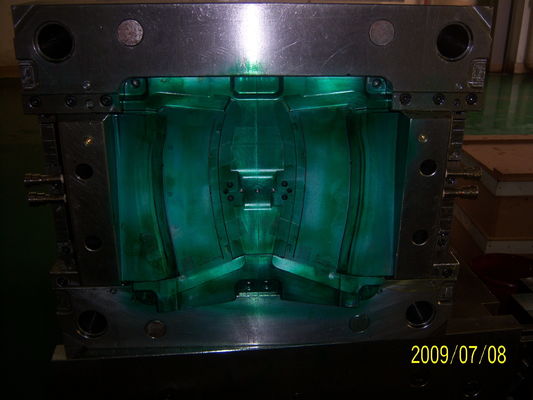

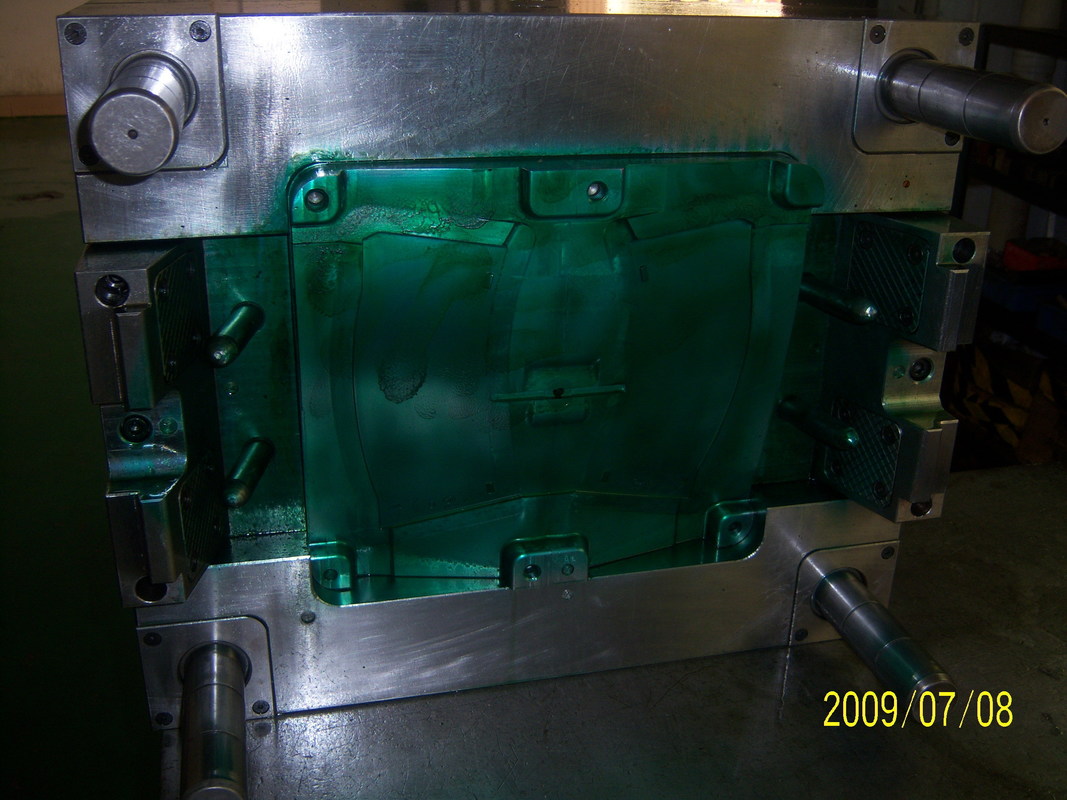

P20 AB Plates Automobile Bezel Plastic Injection Mould Tooling With ABS

Large Image : P20 AB Plates Automobile Bezel Plastic Injection Mould Tooling With ABS

Product Details:

Place of Origin:	China
Brand Name:	Hitop Mold
Certification:	ISO
Model Number:	customer design

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD 1-10000000
Packaging Details:	wooden box for mold and tooling , paper cartons for injection parts
Delivery Time:	depends on the mold size, 20-80 days
Supply Ability:	900 sets of molds per year

Contact Now

We are Good Supplier of Injection Mould Tooling from China

Injection Mould Tooling

The utility model discloses a boring jig tooling for processing a crosshead hole of an

Detailed Product Description

High Light:

custom plastic injection molding

precision plastic injection molding

P20 AB Plates Automobile Bezel Plastic Injection Mould Tooling ABS

HITOP MOULD.pdf

Part Name

Plastic Material

Tooling life

Cavity

Cavity/Core

Mold standard

Gate type

Remarks

89094478-bezel

ABS

1 million shots

1+1

1.2711 HRC 36-41

DME

sub gate

P-20 AB plates, Modtech texturing on cavity side

For your own design , we are glad to provide our best offers. Please share your RFQ details including

1) Drawings

2) Cavties

3) plastic resin

4) mold standard (Europe/ USA with Hasco/ DME, china with LKM)

5) Tooling life or steel type

We are providing completed DFM analysis before the mold making to avoid the customer modification cost after the mold manufacturing or any design mistakes. DFM details are :

1. Cavity layout

2. Slider and lifter location and movement direction.

3. PL (main parting line, insert parting line, slider parting line)

4. ejector pins

5. gate location and type

6. Draft analysis.

7.possible molding defects such as shrinkage, welding line, scratch and proposed solution.

8. Mold flow for filling ,warpage, cooling ,etc.

Key Advantage:

1. Export (HASCO,DME, MISUMI)mold making for over than 15 years

2. Reasonable price and competitive lead time . For urgent cases, we can cooperate with overtiming to catch up customer's requirement on delivery time.

3. Fluent English communication for both business and engineering issues.

4. Gear precision availability.

5. Up to 20 Tonnage / 2m x 1.6m mold size

6. GE and Philips qualified factory.

7. sales coordinator and project team high stability.

8. Plastic injection mold and molded parts are both available.

1. Well mold design is half of success . Our engineering department have 25 experienced mold designers utilizing the latest design software such as

2D drawing : Auto CAD , E –drawing

3D drawing : Pro-E ,UG, Solidworks (wildfire version) ,Mastercam

Mold Flow Analysis

2. We have a Project Management team to follow up the mold making :

Time Schedule: We will provide the time schedule every week to report the mold progress.

Dimensions report: Dimensions report will be submitted to customer together with the trial samples.

Heat Treatment and Steel Certificate

Hitop Mold is the one stop shop mold maker in China with over than 15 years mold making experience. Hitop Mold offers integrated capabilities in design ,prototyping ,mold making ,injection molding ,die-casting and simple assembly to take your initial concept to commercialization .

Mold Standard and type	Hasco, DME, LKM ,FUTABA,Misumi
Mold Standard and type	Injection mold, die-casting mold, overmold,rotational mold, rapid mold, inserts mold,prototype,silicone mold, rubber mold
Service	Mold making, molding , injection, prototype, pre-production, silk screen printing ,industrial design, painting,simple assembly,machining,coating, silicone rubber
Direct &indirect client	Behr, RENAULT, Valeo, PHILIPS ,GE, Intel, VOLVO,AUDI, KIA, HONDA
Tool life	>10000 rapid mold, 100K-200K, 250K-300K, 300K-500K, 1 M>
Usage	Automobile mold, home appliances mold, plastic cover mold, electric plastic parts mold, POS , OA componenet mold, bottle caps mold, decoration mold, household appliances mold, industrial plastic parts
Cavity and core steel	S136, H13, 2083H,420,P-20, 1.2767,ASSAB steel, 1.2344,1.2343 , hardened steel, NAK80,8407 , w302 , F-2,
Software	Solid works, Pro/E, UG, Matercam,E drawing, Auto CAD,
Plastic material	PP/EPDM,PA,PC, ABS,PE, PET,PBT, PC/ABS, +GF,+ PVDF,+TD, +CF,POM,PS, TPU,TPE,TPV,PMMA,PEI, UHMW
