Plastic Injection Mold
Solder mask is exposed to the pads used, it is often said that the green oil, oil is actually digging holes in the green, the green oil does not need to cover the pads and other exposed areas. Proper cleaning can get a suitable surface features.
HASL solder coating HAL (commonly known as HAL) process is first dipped on the PCB flux, then dipping in molten solder, and then

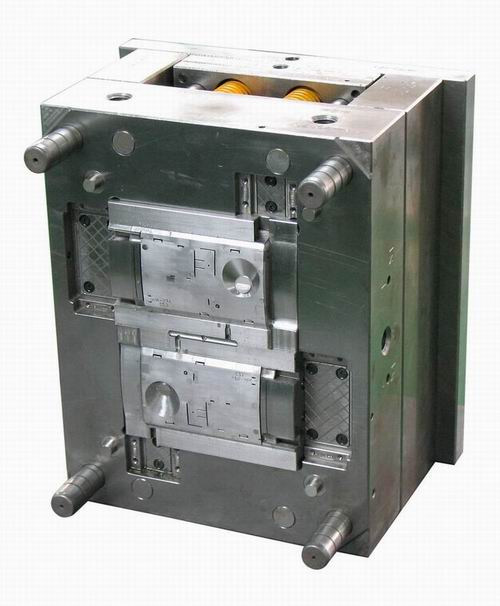

PET / TPE / PVC / HDPE Custom Injection Molding , Multi Cavity IMD Mould
1, Guarantee long time printing stay on the film panel, good capability of anti scratch.
2, No need to use any adhesive with glue for assembly with plastic panel, which meets environment protection requirement.
3, The emboss key can be realized during the plastic injection process. Life time keys can reach to 1 million times.
4, Precision design, well protect the inner film by plastic panel.
5, Dust and humidity resistance.
Flexible for design, which can realize the various terms of products in faster and cheaper solution.7, Saving the working time and cost for assembly film with plastic panel.
8, 3D forming of plastic panel together with film, to enlarge the application of film assembly form flatness surface panel to 3D surface.
9, To office customer more design possibility with better appearance and more safety solution.
LKM & Hasco & DME standard
main material of core and cavity
S136, H13, 2344, 718, 2738, 8407, NAK80…
Hardness of mould
soft mould: 38~42HRC hard mould: 48~52HRC
Single-cavity, Multi-cavity, family mould, interchangeable core/cavity
EDM, texture, grinding, mirror polish
cold runner, hot runner (Yudo/DME/Hasco)
Maximum mould size
Mould life span
ABS, POM, PMMA, PC, PP, Nylon, PA+GF, PET, TPE, PVC, HDPE etc
Wooden case for tools ,PE bags added export carton for parts
EXW, FOB, CIF
Italy, Australia ,Hungary,Germany, USA, Canada…
Secondary treatment for parts
painting, silkscreen, pad printing, plating, assembly
double injection, over moulding, insert moulding, in mouding labelling
