Product Name: | Mold Temperature Control Unit | Brand Name: | AODE |
---|---|---|---|
Application: | Die Casting, Pringting, Extruder | Certification: | CE, ISO |
Cooling Method: | Indirect Cooling | Heat Transfer Medium: | Oil |
Power Supply: | AC3∮380V | Temp Control Accuracy: | PID±1℃ |
High Light: | industrial chiller units,temperature control unit |

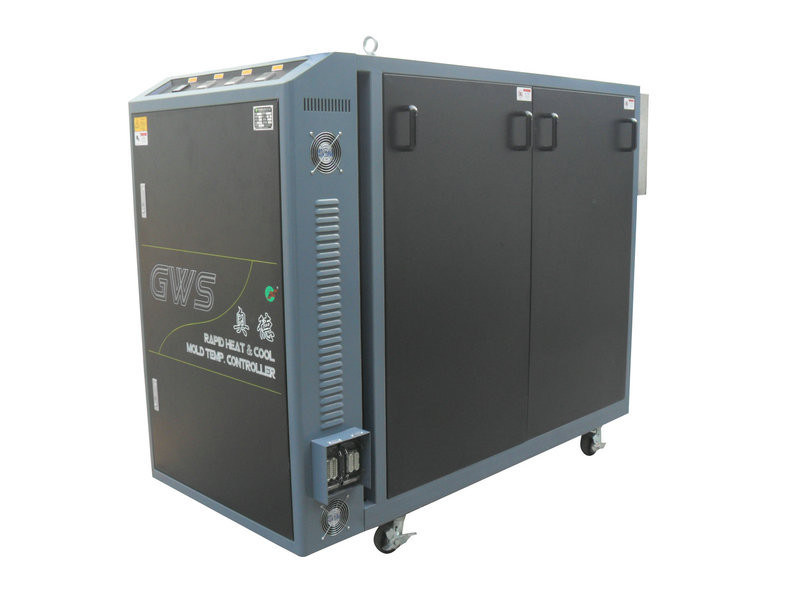

Plastic Injection Mold Temperature Control Unit for Industrial , 114KW Power
Quick Detail:
1. Power:114KW
2. Heating pump power:2.8KW
3. Cooling pump power:2.2KW
4. Certification:CE & ISO
5. Control mode: Computer PLC processor+man-machine interface touch control
6. Warranty:1 year
Description:
Applications:
Chemical Industry
Hot Rolling Machine: Calender Rolls, Wood Presses, Laminating Presses,Molding Presses, Rubber Presses, Jacketed Vessels, Reactors, Heat Exchangers, Mixers, Printing Machines, Asphalt, Vulcanizing Presses.
Die casting,plastic Injection molding, light guide plates, connectors, Chemical engineering, Shoe materials, Pringting and dyeing, Drying and banburying.
Specifications:
ITEM |
UNIT |
GWS-800 |
Power supply |
V |
3∮/380V/50HZ |
Power |
KW |
114 |
Control mode |
|
Computer PLC processor + man-machine interface touch control |
Electric power |
KW |
45-108 |
Heating pump power |
KW |
2.8 |
Cooling pump power |
KW |
2.2 |
Cool/Hot water circling inlet/outlet diameter |
Inch |
DN25(3/8×10) |
Chilled water inlet/outlet diameter |
Inch |
1.2 |
Size |
mm |
1700×850×1400 |
Weight |
KG |
700 |
Competitive Advantage:
1. Strict quality control system
2. Three factories in shenzhen, tianjin and suzhou. More than 60 offices in China.
3. Our product is environmental and energy-saving
4. We have the production certification organic heat transfer material heater
5. High density heat insulation cotton and aluminum foil
6. Electric appliances brands:OMRON, JUJI, TE.LG, MOLLER, ABB and WEST
7. Imported microcomputer or PLC
8. Customization thick copper pipe 1.0-1.2
Nowadays, Aode Machinery Co.,ltd continue to uphold the purpose of international standards designs and high quality products, applying ourselves to providing high standard products and whole-journey nanny service. Our products are widely applied in plastic injection molding, light guide plates, connectors, chemical engineering, compression casting, reaction kettles, rubber tires, calendaring, shoe materials, printing and dyeing, drying and banburying and tec. And widely sold to Japan, America, Italy, Brazil, Southeast Asia, Africa and etc. The brand recognition from the market is sufficient to prove that our temp. control system can replace the imported similar products. Belows are our honor clients.
