Product Details:
Payment & Shipping Terms:
|
 |
Plastic Injection MoldSolder mask is exposed to the pads used, it is often said that the green oil, oil is actually digging holes in the green, the green oil does not need to cover the pads and other exposed areas. Proper cleaning can get a suitable surface features. HASL solder coating HAL (commonly known as HAL) process is first dipped on the PCB flux, then dipping in molten solder, and then |
| Shaping Mode: | Plastic Injection Mould | Product Material: | Steel |
|---|---|---|---|
| Product: | Mould | Runner System: | Hot / Cold Runner |
| Mold Base: | LKM | Mold Material: | 738H 718H NAK80 S136 2344 |
| Modl Life: | 500,000~1,000,000 | Design Software: | Solidwork, UG Etc |
| Design Ability: | Free Design Service | Samples Leadtime: | 1-3 Days For Prototype |
| Shipment: | By Sea Or Air , Or Express | ||
| High Light: | injection molding process,plastic injection moulders |
||
Power Connector Mold Electronic Products Mould
Shenzhen Yonghe Tai Technology Co.,LTD is a professional in making mold and plastic products, If you need mold or products, we can help you to do this, but first please send us more and more information about the mould what you have. Like sample photo, sample size, what's the sample material and what kind of steel you want to make the mould, When we get this information, we can send the mould quote andTechnology analysis.
Our Factory Advantages
1. We are one_stop manufacturer of plastic mold and finished plastic products. Specialized in mold design, making plastic mold, injection process,spraying and silk printing.one-stop services for more than 9 years.
2. We can make molds and plastic products according to your drawings or samples.
3. Our die include: auto parts, household appliances, medical equipment, House application products, electronic and electrical appliances, handicrafts and engineering construction etc...
4. Injection products material character:soft plastic,hard plastic,transparent,ect.
5. Common used plastic material:ABS,PC ,TPR,TPU,PMMA,POM,PA,PP,BPT etc.
TECHNICAL SPECIFICATIONS
| Name |
Power Connector Mold |
| Mould standard | HASCO,DME,MEUSBURGER,JIS,CHINA LKM Standard, etc |
| Mould base |
LKM&Hasco&DME standard (A,B plate 1730,2311,2312, |
| Material main core and cavity insert | DIN2312,2738,2344,718,S136,8407,NAK80,SKD61,H13, etc |
| Hardness of steel | 46~56HRC |
| Material for Slider ,Lifter and all sub insert use | 1.2767 HRC |
| Cavity | Single-cavity ,Multi-cavity |
| A surface request: | EDM & High Polish |
| Gate | Cold runner,Yudo/DME/HASCO/Synventive Hot runner |
| Mould life time | 500000~+1,000,000 shots |
| Quality | ISO900:2008 |
| Product material | PA,PA6/6+GF,ABS,POM,PC,PP,PET,TPE,PVC,HDPE etc |
| Export country | Japan, Europe,USA,Mexico,Australia ,Middle-east ,Asia etc |
| Value-added service | Polish,texture,painting,screen printing,turnkey project |
Custom Your Own Mould
Mould Trade Process :
| 1.Quote | Acc | ||||||||
| ording to sample,drawing and specific requirement. | |||||||||
| ↓ | |||||||||
| 2.Discussion | Mold material,cavity number,price,runner,payment,etc. | ||||||||
| ↓ | |||||||||
| 3.S/C Signature | Approval for all the items. | ||||||||
| ↓ | |||||||||
| 4.Advance | Pay 50% by T/T | ||||||||
| ↓ | |||||||||
| 5.Product Design Checking | We check the product design.If some position is not perfect,or can not be done on the mould,we will send customer the report. | ||||||||
| ↓ | |||||||||
| 6.Mould Design | We make mould design on the basis of confirmed product design,and send to customer for confirmation. | ||||||||
| ↓ | |||||||||
| 7.Mold Tooling | We start to make mold after mold design confirmed. | ||||||||
| ↓ | |||||||||
| 8.Mold Processing | Send report to customer once each week. | ||||||||
| ↓ | |||||||||
| 9.Mold Testing | Send trial samples and try-out report to customer for confirmation . | ||||||||
| ↓ | |||||||||
| 10.Mold Modification | According to customer'feedback. | ||||||||
| ↓ | |||||||||
| 11.Balance Settlement | 50% by T/T after the customer approved the trial sample and mould quality. | ||||||||
| ↓ | |||||||||
| 12.Delivery | Delivery by sea or air.The forwarder can be designated by your side. | ||||||||
The service:
1).we will send the mould productive process to the customer as their wish, picture or the video.
2).during the mould test we will send the sample to the customer.
3).before sending the mould , we will show the packing video (wooden case,painted with
anti-rust) to the customer
4)if we keep the mould in our factory to produce the products ,life warranty.
5)during the warranty, all maintenances are free
Packaing:
Mould pack: wooden splint(export standard)
Product pack:pp bag or nylon bag +carton
Product spe: customer's demanding

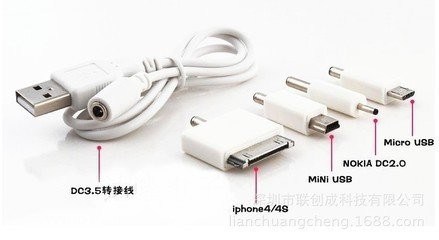

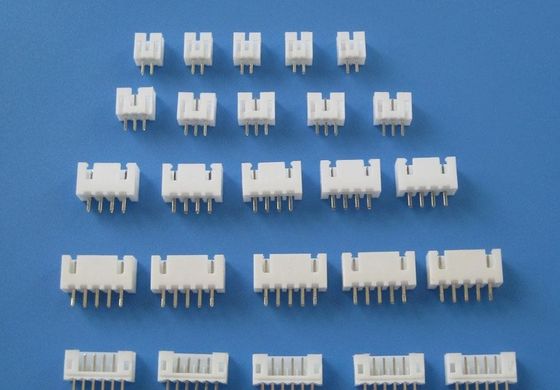

PictureS Of The Product Series:
