Injection Mould ToolingThe utility model discloses a boring jig tooling for processing a crosshead hole of an |
| Cage: | Steel Cage | Dimension: | 140*300*62MM |
|---|---|---|---|
| Number Of Row: | Single Row | Seals Type: | OPEN |
| Type: | Deep Groove Ball Bearing | Applications:: | Automobiles Tractors Machine Tools Motors Pumps Agricultural Machinery, Textile Machinery |
| Cage Material: | Metal, Brass | Clearance: | C2, C3, C4, C5 |
| Material: | Chrome Steel, Carbon Steel, Stainless Steel | Precision Level: | P6, P5, P4, P2 |
| Vibration: | Z1V1, Z2V2, Z3V3 | Dimension:: | 140*300*62MM |
| Bearing Type:: | Deep Groove Ball Bearing | ||
| High Light: | deep groove radial ball bearings,single row deep groove ball bearings |
||
Steel 6328 C3 Deep Groove Ball Bearing With Z Seals For Machine Tools
Quick Detail:
1) Deep groove ball Bearings 6328 C3
2) Bearing material :Chrome steel
Cage: steel cage.
Seal:open
3) Abundant stock ,Quick Delivery
4)Brands: FAG,MBY or OEM
Specifications:
|
Model Number |
6328 C3 |
|
Brand Name |
,MBY or OEM |
|
Dimension |
140*300*62MM |
|
Weight |
22KG |
|
Basic Load Rating |
Dynamic:251.1KN ; |
|
Static: 245KN |
|
|
Limiting Speed |
Grease:2,200rpm |
|
Oil:2,600rpm |
|
|
Type |
Deep groove ball bearing |
|
Seals Type |
OPEN |
|
Material |
Chrome Steel ,Carbon Steel, Stainless Steel |
|
Cage material |
Metal/Brass |
|
Clearance |
C0,C2,C3,C4,C5 |
|
Vibration |
Z1V1,Z2V2 and Z3V3 |
|
Precision Level |
P0,P6,P5,P4,P2(ABEC1, ABEC3, ABEC5, ABEC7, ABEC9) |
|
Number of Row |
Single row |
|
Guarantee |
One year. |
|
Certifications |
ISO 9001:2008 |
|
Package |
Box, Carton, Wooden Case, Plastic Tube or Per buyers requirerment |
|
Place of Origin |
China (Mainland) |
|
MOQ |
10PCS |
|
Service |
(1) Prompt Delivery |
|
(2) OEM |
|
|
(3) Buyer Label accepted |
|
|
(4) Follow up and maintainance |
|
|
Payment Term |
TT or L/C or Western Union |
|
Port |
Shanghai/Shenzhen |
Description:
Deep groove ball bearing 6328 C3
Deep Groove ball bearings are the most popular of all the ball bearing types because they are available in a wide variety of seal, shield and snap-ring arrangements. The bearing ring grooves are circular arcs made slightly larger than the radius of the ball.
Single row deep groove ball bearings are the most frequently used type of rolling bearing. They are produced in numerous sizes and designs and are particularly economical Sealing
Open bearings are suitable for high to very high speeds.
Deep groove ball bearings with the suffix 2Z have gap seals on both sides and are suitable for high speeds.
Bearings with the suffix 2RS have lip seals on both sides made fromnitrile butadiene rubber NBR and are suitable for moderate speeds.
By agreement, we can supply bearings with non-contact BRS seals on both sides (suffix 2BRS). These bearings have favourable frictional behaviour equivalent to that of bearings with Z seals . If the inner ring is stationary and the outer ring rotates, the lubricant loss is less than that in bearings with Z seals .
·
|
· · 60series: |
· 606,607,608,,6000,6001,6002,6003,6004,6005,6006,6007,6008, · 6009,6328 C3,6011,6012,6013,6014,6015 |
|
· 62series: |
· 626,627,628,629,6200,6201,6202,6203,6204,6205,6206,6207, · 6208,6209,6210,6211,6212 |
|
· 63series: |
· 6300,6301,6302,6303,6304,6305,6306,6307,6308,6309,6310, · 6311, 6312 |
|
· 67series: |
· 3705 |
|
· 68series: |
· 686,687,688,689,6800,6801,6802,6803,6804,6805,6806,6807, · 6808,6809,6810 |
|
· 69series: |
· 696,697,698,699,6900,6901,6902,6903,6904,6905,6906,6907, · 6908,6909,6910 |
|
· 16000series: |
· 16001,16002,16003,16005,16007 |
Applications:
Home appliances
Low noise and high speed electric motors;
Automotive
Steel industry,
Mining industry,
Paper machinery,
Wind turbine,
Machine tools,
Gear box,
Electric motor,pumps and compressor,
Office equipment,
Injection moulding machinery,
Motorcycle,
Railway

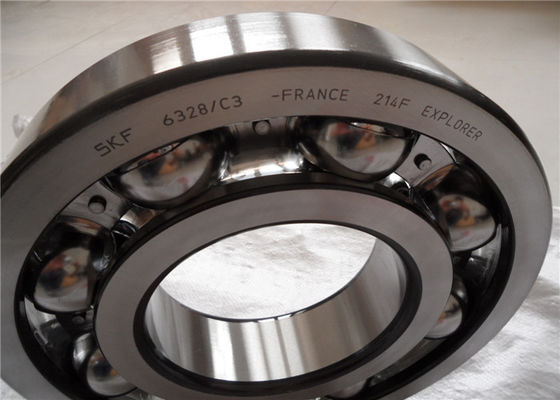

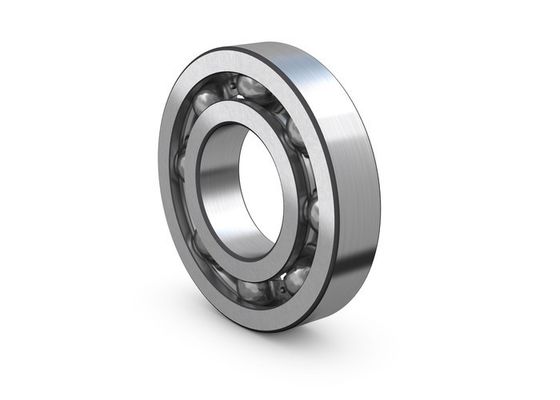

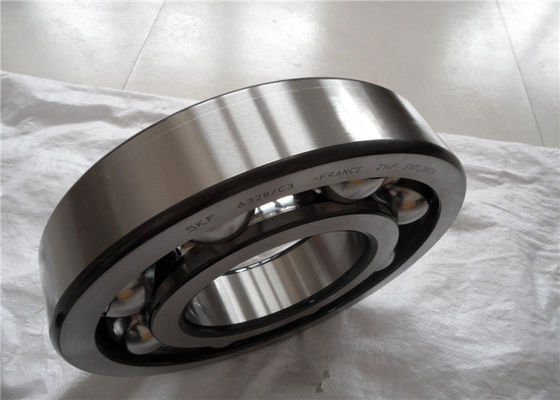

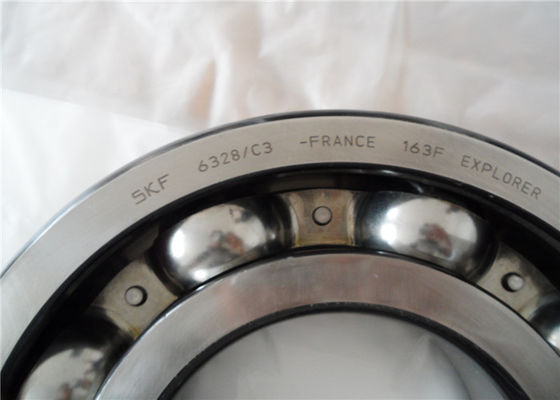

Pictures:
Related Model:
|
|
d |
D |
W |
Weight |
|
Basic Bearing No. |
mm |
mm |
mm |
kg |
|
635 |
5 |
19 |
6 |
0.008 |
|
6300 |
10 |
35 |
11 |
0.053 |
|
6301 |
12 |
37 |
12 |
0.06 |
|
6302 |
15 |
42 |
13 |
0.082 |
|
6303 |
17 |
47 |
14 |
0.115 |
|
6304 |
20 |
52 |
15 |
0.144 |
|
6305 |
25 |
62 |
17 |
0.2193 |
|
6306 |
30 |
72 |
19 |
0.3498 |
|
6307 |
35 |
80 |
21 |
0.4542 |
|
6308 |
40 |
90 |
23 |
0.6394 |
|
6309 |
45 |
100 |
25 |
0.8363 |
|
6310 |
50 |
110 |
27 |
1.0822 |
|
6311 |
55 |
120 |
29 |
1.35 |
|
6312 |
60 |
130 |
31 |
1.7 |
|
6313 |
65 |
140 |
33 |
2.1 |
|
6314 |
70 |
150 |
35 |
2.5 |
|
6315 |
75 |
160 |
37 |
3 |
|
6316 |
80 |
170 |
39 |
3.66 |
|
6317 |
85 |
180 |
41 |
4.28 |
|
6318 |
90 |
190 |
43 |
4.99 |
|
6319 |
95 |
200 |
45 |
5.76 |
|
6320 |
100 |
215 |
47 |
7 |
|
6321 |
105 |
225 |
49 |
8.05 |
|
6322 |
110 |
240 |
50 |
9.54 |
|
6324 |
85 |
110 |
13 |
12.4 |
|
6326 |
85 |
150 |
28 |
15.3 |
|
6328 |
90 |
160 |
30 |
22 |
MBY deep groove ball bearing 6328 C3 ,single row deep groove ball bearing
