Plastic Injection MoldSolder mask is exposed to the pads used, it is often said that the green oil, oil is actually digging holes in the green, the green oil does not need to cover the pads and other exposed areas. Proper cleaning can get a suitable surface features. HASL solder coating HAL (commonly known as HAL) process is first dipped on the PCB flux, then dipping in molten solder, and then |
| SCREW DIAMETER: | 85mm，90mm，100mm,110mm | SCREW L/D RATIO: | 23.3L/D,22L/D,19.8L/D,18L/D |
|---|---|---|---|
| CLAMP TONNAGE: | 7800KN | TOGGLE STROKE: | 970MM |
| MACHINE WEIGHT: | 31t | OIL TANK CUBAGE: | 1200 L |
| High Light: | injection molding machines,preform injection molding machine |
||

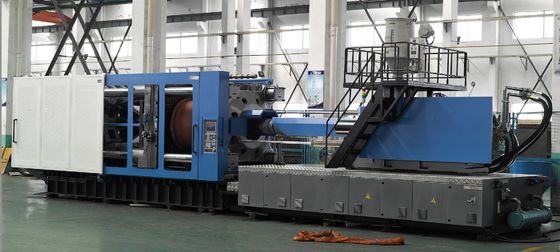

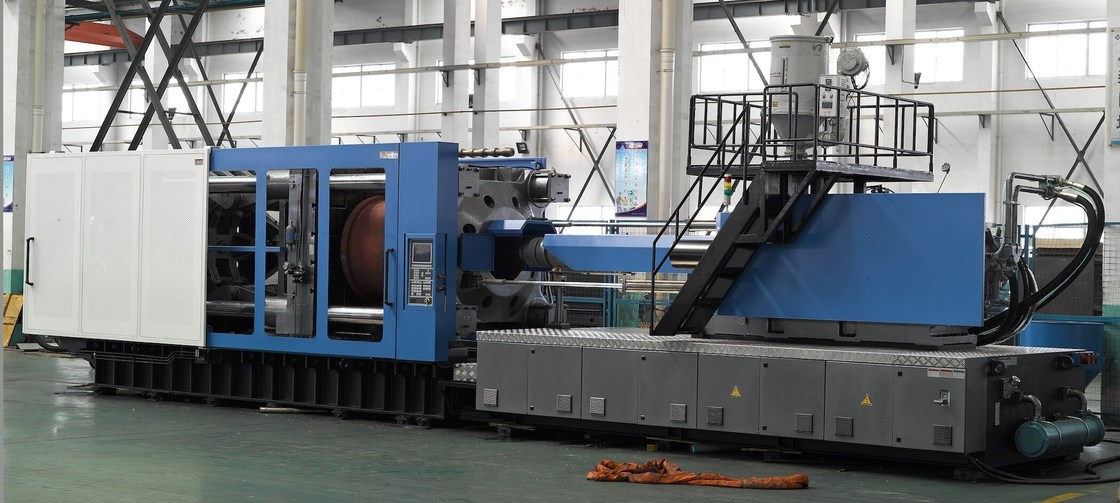

Hydraulic motor Low Noise Plastic Injection Molding Machine with M 780
Detailed Product Description
Standard configuration:
Adopt famous hydraulic components:
Yuken-Japan pump,Yuken-Japan direction valve,
Hydraulic motor for melting plastic using intermot italy-China
Back pressure valve Yuken Japan
Air switch from LG Korea
Breaker AC contactor ,single phase breaker ,three-phase breaker from Schneider france
T-slot makes the adjustment easier, compare with the screw adjustment, it has better adaptability and longer life-span
COMPONENT
| COMPONENT | BRAND&ORIGINAL | ||
| hydraulic system | Servo | ||
| hydraulic motor | INTERMOT-ITALY-CHINA | ● | |
| servo motor control system | HUICHUAN/PHASE-CHINA | ● | |
| hydraulic pump | fixed Pump | VICKERS OR YUKEN | / |
| gear pump | SUMITOMO-JAPAN | ● | |
| hydraulic direction valve | NORTHMAN-TAIWAN | ● | |
|
propotional flow control valve&propotiona l pressure control valve |
HNC-TAIWAN FOR BIG MACHINE, SMALL MACHINE USE DONGFENG-CHINA |
/ | |
| mould adjust hydraulic motor | INTERMOT-CHINA | ● | |
| hydraulic safety valve | NORTHMAN-TAIWAN | ● | |
| electric system | |||
| computer/controller | TECHMATION-TAIWAN | ● | |
| relay | SCHNEIDER-GERMANY | ● | |
| main switch | LS-KOREA | ● | |
| linear transducer | GEFRAN-ITALY | ● | |
| limited switch | PANASONIC-JAPAN | ● | |
| breaker | CHENTAI-CHINA | ● | |
| electric motor | ZHONGDA-CHINA | / | |
| others | |||
| High pressure hydraulic pipe | GOODYEAR-USA | ● | |
| seals | VALQUA-JAPAN | ● | |
| pressure meter | Tecsis-USA | ● | |
| automatic lubrication | SL-CHINA | ● | |
| screw | JINGXING-CHINA 38CrMoAlA | ● | |
SPECIFICATION
| SPECIFICATION | M-780 | ||||
| ITEM | A | B | C | D | |
| INJECTION UNIT | |||||
| SCREW DIAMETER | mm | 85 | 90 | 100 | 110 |
| SCREW L/D RATIO | L/D | 23 | 22 | 20 | 18 |
| SHOT VOLUME(THEORETICAL) | ㎤ | 2667 | 2990 | 3691 | 4467 |
| INJECTION WEIGHT(PS) | g | 2454 | 2751 | 3396 | 4109 |
| INJECTION PRESSURE | Mpa | 198 | 177 | 143 | 118 |
| INJECTION RATE | g/sec | 380 | 426 | 526 | 613 |
| SCREW SPEED | rpm | 135 | |||
| CLAMPING UNIT | |||||
| CLAMP TONNAGE | KN | 7800 | |||
| TOGGLE STROKE | mm | 970 | |||
| MIN.MOLD HEIGHT | mm | 400 | |||
| MAX.MOLD HEIGHT | mm | 950 | |||
| SPACE BETWEEN TIE BARS | mm | 960X960 | |||
| EJECTOR TONNAGE | KN | 170 | |||
| EJECTOR STROKE | mm | 280 | |||
| EJECTOR NUMBER | PC | 17 | |||
| OTHERS | |||||
| MAX.PUMP PRESSURE | Mpa | 16 | |||
| HEATER POWER | KW | 47 | |||
| PUMP MOTOR POWER | KW | 22+37 | |||
| OIL TANK CUBAGE | L | 1200 | |||
| MACHINE DIMENSION(LxWxH) | M | 98X2.4X2.7 | |||
| MACHINE WEIGHT | T | 31 | |||
Selling points
Better molding stability
Compared with conventional injection molding machines , repeatability is greatly improved to servo motor closeloop control.
More fast cycle
valve panel design in bigger hole with bigger oil pipe.Oil go though the valve more fast flow and the Machine action more goes more faster in mould open and ejector process.
Mould thickness fully-automatic adjustment by sensor,wheel and moto,more accurate
Install screw rotation speed sensor ,can see the real material charging status in the controller.
High enery saving
In an ideal working state , compared with conventional inject molding machines , their energy saving can reach 20%-80%.
