High Precision Multi Cavity Plastic Injection Mold Tooling Approved ISO

Large Image : High Precision Multi Cavity Plastic Injection Mold Tooling Approved ISO

Product Details:

Place of Origin:	China
Brand Name:	Hitop Mold
Certification:	ISO
Model Number:	customer design

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD 1-10000000
Packaging Details:	wooden box for mold and tooling , paper cartons for injection parts
Delivery Time:	depends on the mold size, 20-80 days
Supply Ability:	900 sets of molds per year

Contact Now

We are Good Supplier of Hot Runner Injection Molding from China

Hot Runner Injection Molding

The invention discloses an injection molding machine for automotive interior parts and a preparation method for the automotive interior parts. The injection molding machine comprises a bicolor vertical injection molding machine, wherein a compression molding mold and an injection mold are arranged in the bicolor vertical injection molding machine, wherein the compression molding mold is used for spreading an injection molding part into the injection mold, the injection mold comprises an upper

Detailed Product Description

High Light:

precision plastic injection molding

home plastic injection molding

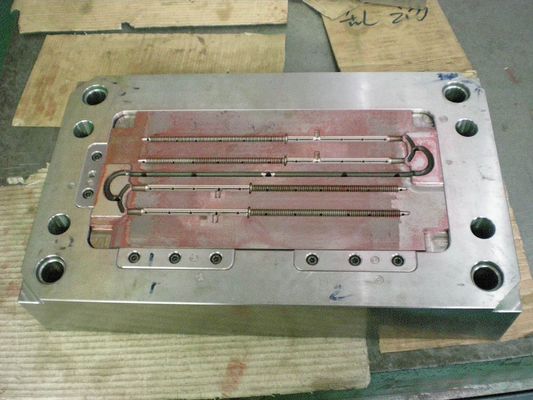

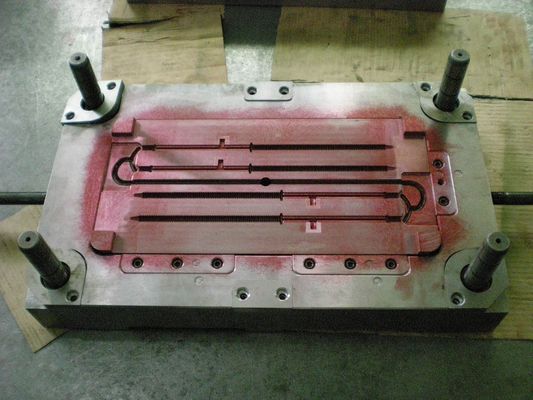

High Precision Plastic Injection Mold Tooling Multi Cavity DME Mold

HITOP MOULD.pdf

Part Name	Plastic Material	Tooling life	Cavity	Cavity/Core	Mold standard	Gate type	Remarks

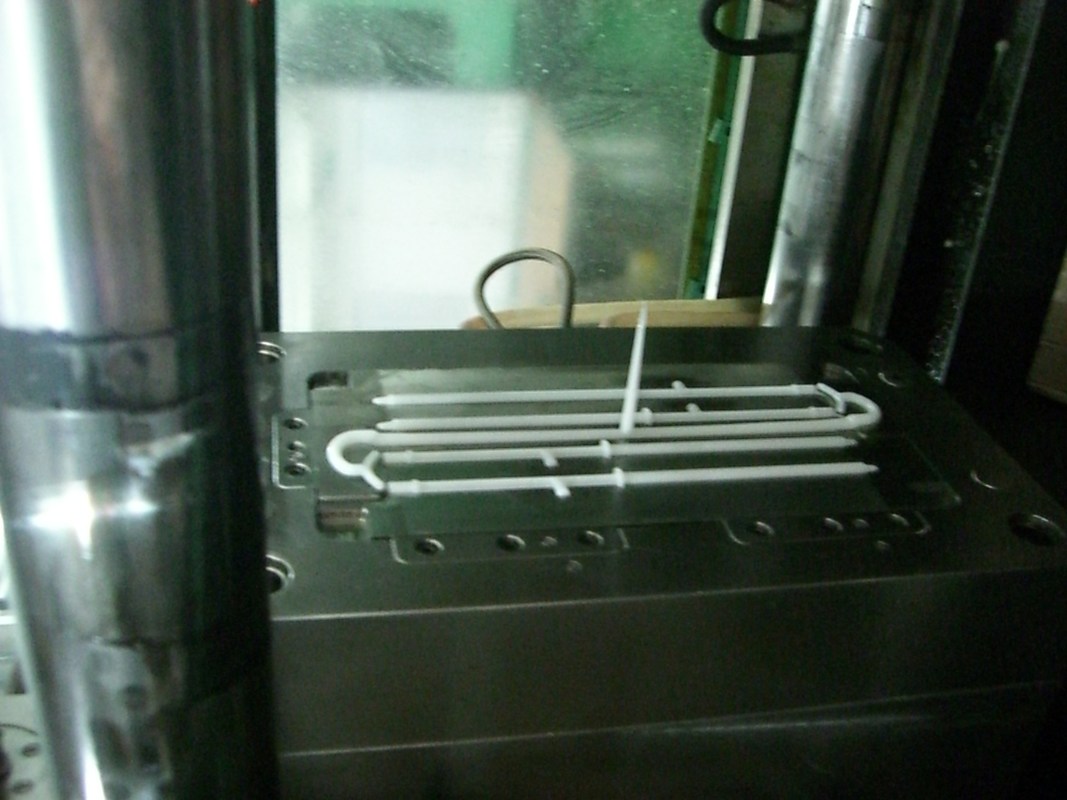

Tige	POM	1 million shots	1*4	1.2344 48-52HRC	DME	sub gate	P20 AB plates, Staubli and Harting components

With the help of CMM, projector, and some other　measuring tools and equipments and team members conscientiousness,we can guarantee the mold quality by inspecting in-coming material ,manufacturing process and samples.

Plastic Injection Mould Service Process:

1. RFQ for free

          ↓
2. quotation and detailed Discussion
Mould material,cavity number,price,runner,payment,etc.
          ↓
3. Order placed with final 3D.

          ↓
4. DFM and Design mould
DFM is the presentation of main technical points as well as where we find issues and possible defects which may cause unnecessary modifications .We will send mould design to customer for confirmation
          ↓
5. Mould manufacturing
We start to process mould after mould design confirmed
          ↓
6. schedule report
Send pictures and weekly schedule report to customer to let customer know what we are doing
          ↓
7. Mould trial
sample submission with inspection report of trial shots
          ↓
8. sample approval and mold Delivery
Ship mould after mould quality confirmed.

Our main QC Process are as follows :

1. Customer’s Mold Specification Sheet Check
2. Mold Design Control
3. Mold Steel Hardness Inspection
4. Mold Electrodes Inspection
5. Mold Core and Cavity Steel Dimension Inspection
6. Mold　Pre-Assembly Inspection
7. Mold Trial Report and Samples Inspection
8. Final Full Inspection prior to shipment
9. Mold Package Inspection

1. Well mold design is half of success . Our engineering department have 25 experienced mold designers utilizing the latest design software such as

2D drawing : Auto CAD , E –drawing

3D drawing : Pro-E ,UG, Solidworks (wildfire version) ,Mastercam

Mold Flow Analysis

2. We have a Project Management team to follow up the mold making :

Time Schedule: We will provide the time schedule every week to report the mold progress.

Dimensions report: Dimensions report will be submitted to customer together with the trial samples.

Heat Treatment and Steel Certificate

Hitop Mold is the one stop shop mold maker in China with over than 15 years mold making experience. Hitop Mold offers integrated capabilities in design ,prototyping ,mold making ,injection molding ,die-casting and simple assembly to take your initial concept to commercialization .

Where we win in mold manufacturing :

Competitive delivery time and reasonable price For urgent cases, we can cooperate with very short lead time to catch up customer's demand.
Philips and GE qualified supplier
2m x 1.6m mold size capacity
Plastic injection mold and molded parts are both available.
Over than 15 year mold making experience to USA and Europe with DME, HASCO standard.
High precision availability.
Fluent English communication for both business and engineering issues.
Detailed DFM service before the mold making ---- SAVE YOUR MODIFICATION COST !
sales coordinator and project team high stability.
