Hot Runner Injection MoldingThe invention discloses an injection molding machine for automotive interior parts and a preparation method for the automotive interior parts. The injection molding machine comprises a bicolor vertical injection molding machine, wherein a compression molding mold and an injection mold are arranged in the bicolor vertical injection molding machine, wherein the compression molding mold is used for spreading an injection molding part into the injection mold, the injection mold comprises an upper |
High Light: | custom plastic injection molding,home plastic injection molding |
---|

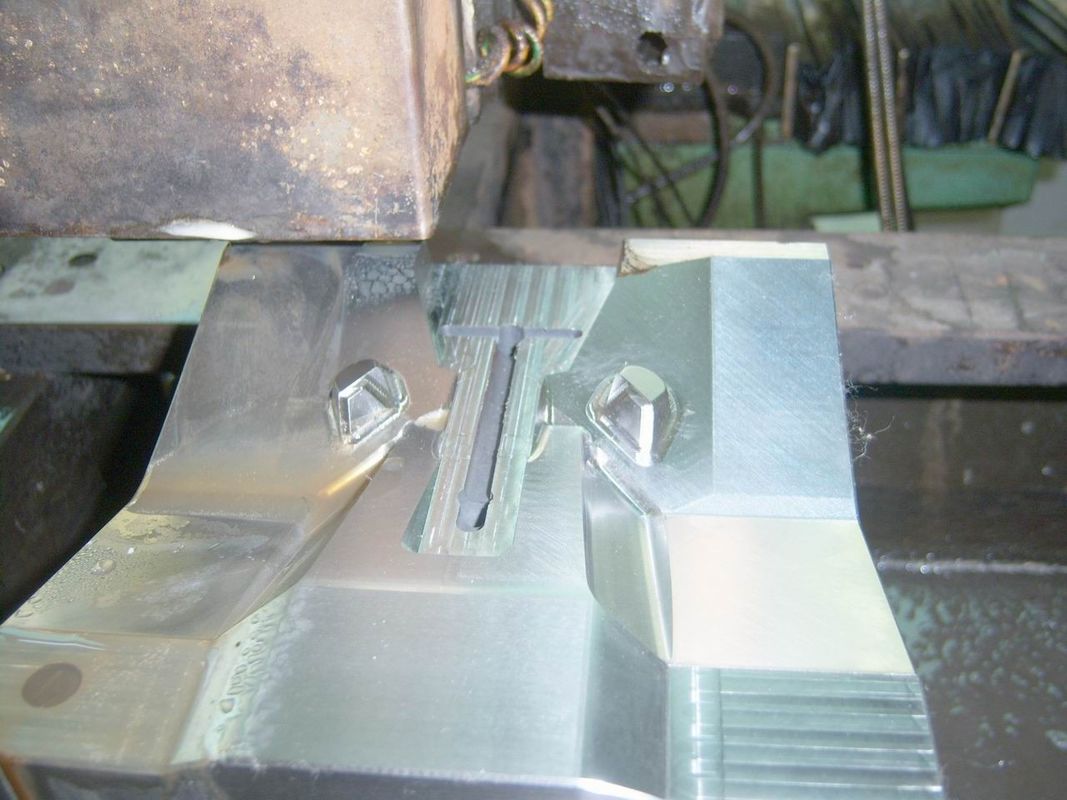

Titanizing Slider Ejector Pins Plastic Injection Mold Tooling for Auto Parts Mould
Part Name | Plastic Material | Tooling life | Cavity | Cavity/Core | Mold standard | Gate type | Remarks | |
|
PC | 1 million shots | 1+1 | 1.2343 48-52HRC | DME | sub gate | slider, ejector pins to be titanizing. 2 sliders |
Where we win in Hitop Mold manufacturing :
We are glad to quote your own design. Please send us RFQ details including
1) Drawings , 2D and 3D.
2) Cavities. If hot runner is required, please inform the hot runner brand.
3) plastic material
4) mold standard (Europe / USA with Hasco/ DME, china with LKM)
5) Tooling life and steel type
We are providing completed DFM analysis before the mold making to avoid the customer modification cost after the mold manufacturing or any design mistakes. DFM details are :
1. Cavity layout
2. Slider and lifter location and movement direction.
3. PL (main parting line, insert parting line, slider parting line)
4. ejector pins
5. gate location and type
6. Draft analysis.
7.possible molding defects such as shrinkage, welding line, scratch and proposed solution.
8. Mold flow for filling ,warpage, cooling ,etc.
What we can supply:
1. Auto parts mould
bumper mould, auto lights mold, handbrake , instrument desk , ashtray mold , storage mold , panel mold , dashboard mold, car door mold , interior plastic parts.
2. Motorcycle spare parts mould
rear view mirror mould,helmet mould,helmet glasses mould,fender mould,motorcycle side plate mould
3. Industrial products mould
holder mold, cover mold, pallet mould, crate mould
4. Commodity mould
food container(thin wall thickness) mould, tray mould, box mould, chair mould, toilet seat mould, table mould, desk mould, display case mold, laundry baskets mould, shopping basket mould, hanger mould, helmet mould, etc.
5. Home appliance mould
air cooler mould, air conditioner mould, washing machine mold, refrigerator mould, blender mould, vacuum cleaner mould, steam iron mould, massage chair mould, etc.
6. Medical device plastic cover holder body
Mold Standard and type |
Hasco, DME, LKM ,FUTABA,Misumi |
Injection mold, die-casting mold, overmold,rotational mold, rapid mold, inserts mold,prototype,silicone mold, rubber mold |
|
Service |
Mold making, molding , injection, prototype, pre-production, silk screen printing ,industrial design, painting,simple assembly,machining,coating, silicone rubber |
Direct &indirect client |
Behr, RENAULT, Valeo, PHILIPS ,GE, Intel, VOLVO,AUDI, KIA, HONDA |
Tool life |
>10000 rapid mold, 100K-200K, 250K-300K, 300K-500K, 1 M> |
Usage |
Automobile mold, home appliances mold, plastic cover mold, electric plastic parts mold, POS , OA componenet mold, bottle caps mold, decoration mold, household appliances mold, industrial plastic parts |
Cavity and core steel |
S136, H13, 2083H,420,P-20, 1.2767,ASSAB steel, 1.2344,1.2343 , hardened steel, NAK80,8407 , w302 , F-2, |
Software |
Solid works, Pro/E, UG, Matercam,E drawing, Auto CAD, |
Plastic material |
PP/EPDM,PA,PC, ABS,PE, PET,PBT, PC/ABS, +GF,+ PVDF,+TD, +CF,POM,PS, TPU,TPE,TPV,PMMA,PEI, UHMW |
