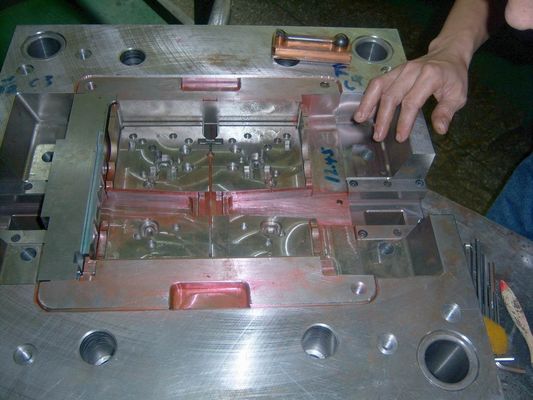

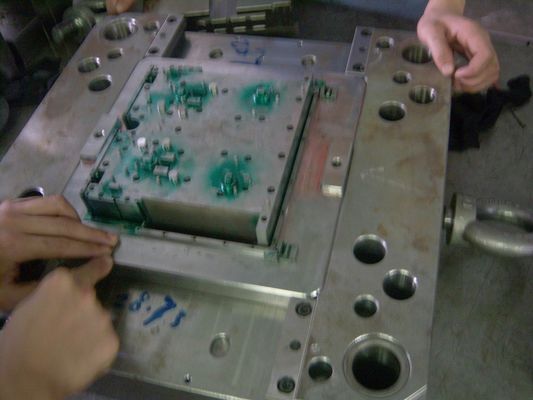

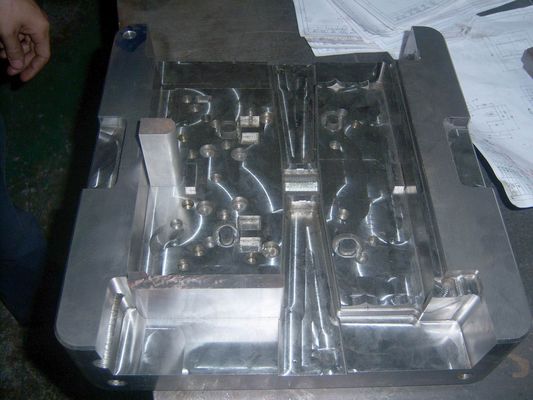

20000 Shots Rapid Prototyping Injection Molding with YUDO Hot Runner 1050 AB Plate

Large Image : 20000 Shots Rapid Prototyping Injection Molding with YUDO Hot Runner 1050 AB Plate

Product Details:

Place of Origin:	China
Brand Name:	CT Hitop Mold
Certification:	ISO
Model Number:	customer design

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD 1-1000000
Packaging Details:	wooden box for mold and tooling , paper cartons for injection parts
Delivery Time:	depends on the mold size, 20-80 days
Supply Ability:	900 sets of molds per year

Contact Now

We are Good Supplier of Hot Runner Injection Molding from China

Hot Runner Injection Molding

The invention discloses an injection molding machine for automotive interior parts and a preparation method for the automotive interior parts. The injection molding machine comprises a bicolor vertical injection molding machine, wherein a compression molding mold and an injection mold are arranged in the bicolor vertical injection molding machine, wherein the compression molding mold is used for spreading an injection molding part into the injection mold, the injection mold comprises an upper

Detailed Product Description

Highlight:

prototype injection moulding

rapid prototyping plastic injection molding

20000 Shots Rapid Prototype Injection Molding with YUDO Hot Runner 1050 AB Plate

HITOP MOULD.pdf

Part Name	Plastic Material	tooling life	Cavity	Cavity/Core	Mold standard	Mold type	Remarks
AB10391--3	PC UL 94V0	20000 shots	single	P20	LKM	3 plates	1050 AB plate, Yudo hot runner

Prototype mold and rapid mold are cheaper and faster solution for the short life tooling .

With the help of　CMM, projector, and some othermeasuring tools and equipments and team members conscientiousness,we can guarantee the mold quality by inspecting in-coming material ,manufacturing process and samples.

Our main QC Process are as follows :

1. Customer’s Mold Specification Sheet Check
2. Mold Design Control
3. Mold Steel Hardness Inspection
4. Mold Electrodes Inspection
5. Mold Core and Cavity Steel Dimension Inspection
6. Mold　Pre-Assembly Inspection
7. Mold Trial Report and Samples Inspection
8. Final Full Inspection prior to shipment
9. Mold Package Inspection

For your RFQ , we are glad to provide our best offers. Please share your RFQ details including

1) Drawings

2) Cavity requirement and tooling life

3) plastic material type

4) mold standard (Europe with Hasco/ DME, china with LKM)

Hitop Mold is the one stop shop mold maker in China with over than 15 years mold making experience. Hitop Mold offers integrated capabilities in design ,prototyping ,mold making ,injection molding ,die-casting and simple assembly to take your initial concept to commercialization .

1. Well mold design is half of success . Our engineering department have 25 experienced mold designers utilizing the latest design software such as

2D drawing : Auto CAD , E –drawing

3D drawing : Pro-E ,UG, Solidworks (wildfire version) ,Mastercam

Mold Flow Analysis

2. We have a Project Management team to follow up the mold making :

Time Schedule: We will provide the time schedule every week to report the mold progress.

Dimensions report: Dimensions report will be submitted to customer together with the trial samples.

Heat Treatment and Steel Certificate
