Medical Injection MoldingThe invention belongs to the plastic molding or connecting field, especially relates to a technology for making an integrated body through injection molding, and an apparatus thereof, and concretely relates to a medical EVA inner bottle cap injection molding technology and a die thereof. The injection molding technology is designed against the characteristics of the complex structure of an EVA inner bottle cover, high health standards of a medical apparatus, and high requirements of injection |
| High Light: | plastic injection molding,plastic injection molds,custom injection molding |
||
|---|---|---|---|
Quick Detail:
1. The part name: Medical instruments(plastic injection mold)
2. Plastic material: ABS
3. Cavity material: H13 HRC48-52
4. Mold life: 1000k shots or according to customers quantity condition to decide it with saving cost for our customers.
5. Gate type: SUB-gate, direct gate, fan gate, point gate, edge gate, valve gate, tip gate etc according to our customers requires.
6. Mold base standard: LKM Local standard, DME or HASCO, Customize according to customers' requirements.
7. Standard of mold accessories: LKM, DME, HASCO, MISUMI, Meusburger, CUMSA, Progressive, INCORE, HRS, Husky, YUDO, PETS, MOLD-MASTER, MERKLE, Parker, HPS, EUCHNER, RJG, cilpres, NITTO, CRACK, ASSAB, GSW DIN standard, BOHLER, AISI standard, DAIDO JIS standard, PUNCH etc according to our customers requires.
Description:

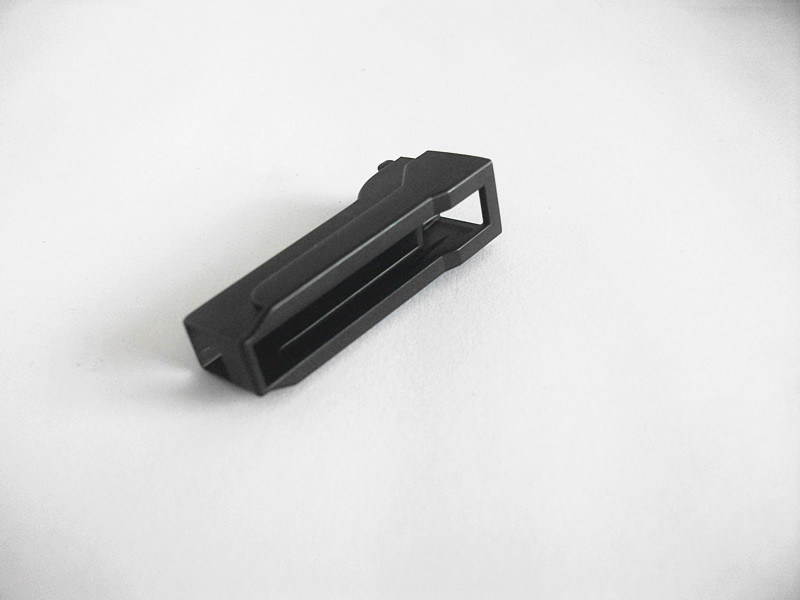

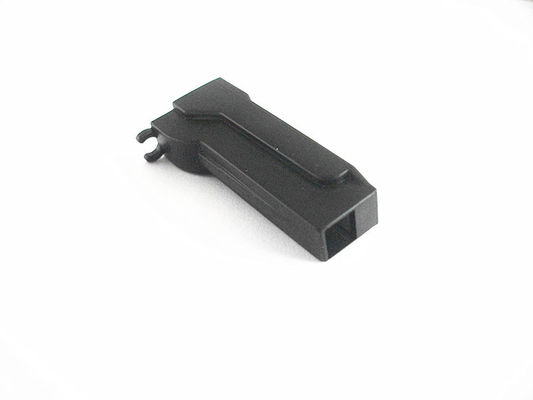

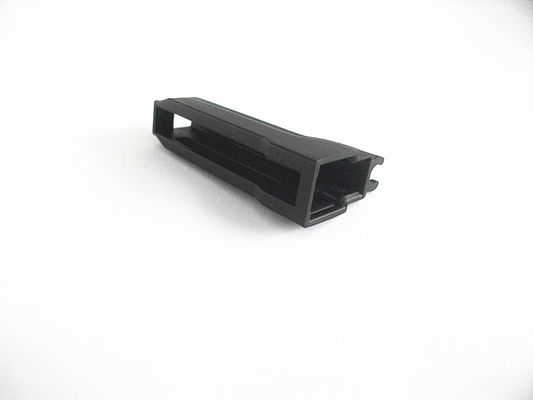

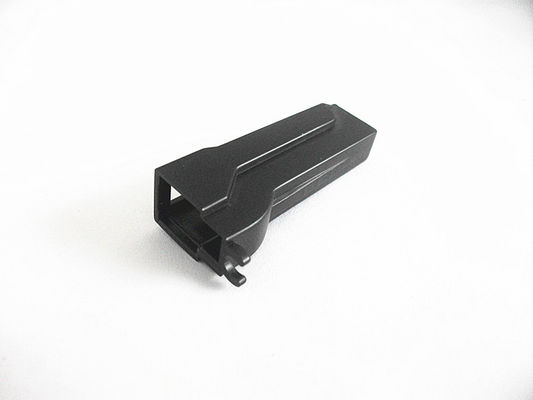

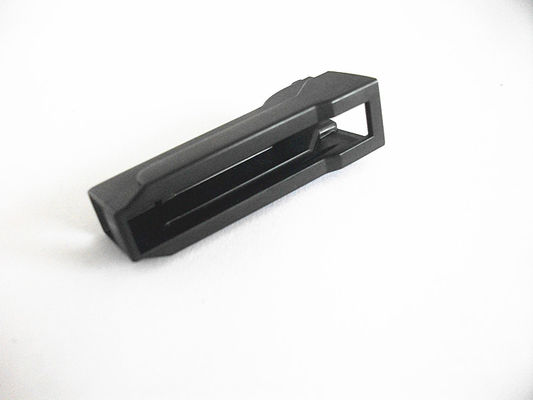

The part name: Medical instruments
Mold type: Plastic Injection Mould with HOT runner system
Part Material: ABS
Locating ring Dimension: Ф100
KO Pattern: 200*200
Sprue Radius: SR 19
Ejection type: ejection pins.
Mold construction description: HOT runner system with SUB gate, 2 plates, 8sliders, and
many shut off area. Many size tolerances are no more than +/-0.02mm, stripper plate,
there is a very small long center pin in the product,which is very easy to be deform when
molding,moreover, this mold have 24 cav,we must ensure that the size of all mold component
are consistent in mass production. One special slider is be used which is familiar with
teetertotter.
This part has very high appearance and size requirements, the defect showed below will not be acceptable, for example, weld line, Dark Sport, Sliver Marks, Gas Trap Effect, Visible Ejector Marks,Deformation,Short shot Filling, Burnt Streaks, Sink Marks,Flash,Over dimension, Under dimension, Stress Crack etc. Moreover, the product finishing surface must meet the requires more than SPI-SPE B-2.
This mould is made in Shiny Mould Factory. It is a mould exported to Europe, with complicated structures and high quality requests. Customer needs mold life to be over 1 million shots. We can ensure this mold life and give warrant to our customer that once some mould components are broken during working, if it is caused not by the operation fault from the workers, we can provide new mould components to them free of charge.
Specifications:
1.name | Medical instruments(plastic injection mold) |
Plastic material | ABS,PE,PA,PC,ABS,POM,PVC,PMMA,PS,PPO,ASA,TPU,TPR,EVA,PP+GF,PC+GF,POM+GF, PA+GF,PPT,PET,PETG,SEBS etc. |
3.mould base material | S50C,P20,S136 etc |
4.cavity material | H13 HRC48-52,S136,420, P20, D2, 1040, 0-1, S-7, A2, 1.2344, 1.2083, 1.2311, 1.2739, 1.2343, 1.2510, 1.2767,NAK80,SKD61,718,738,DF-2 etc |
5.mold life | 1000k shots or according to customers quantity condition to decide it with saving cost for our customers. |
6.cavity number | 24 |
7.runner | HOT runner |
8.gate type | SUB-gate, direct gate, fan gate, point gate, edge gate, valve gate, tip gate etc according to our customers requires. |
9.mould weight | 1350 kg |
10. mould base standard | LKM Local standard, DME,HASCO,Customize according to customers' requirements |
11.cycle time | 32 second |
12. standard of mold accessories | LKM, DME, HASCO, MISUMI, Meusburger, CUMSA, Progressive, INCORE, HRS, Husky, YUDO, PETS, MOLD-MASTER, MERKLE, Parker, HPS, LKM, EUCHNER, RJG, cilpres, NITTO, CRACK, ASSAB, GSW DIN standard, BOHLER, AISI standard, DAIDO JIS standard, PUNCH etc according to our customers requires. |
13.design software | Auto CAD ,UG, Pro-E ,Solid Works,Moldflow,etc. |
14. File Formats | Auto CAD (DWG), DXF, JPG or JEPG, PDF, Pro-E or Pro/Engineer(DRW,PRT), IGES, STEP,XTL,UG parts etc. |
15. injection molding machine | About 300T |
16. MOQ | 1 set |
17. payment | T/T, To be negotiated |
18.package | Wooden case or Wooden box with steel frame |
19. delivery time(day) | 45 T1 according to customers' requirements |
20. OEM or ODM | is available |
21. mould logo | Based on customer requires |
22. after-sales service | one year is warranties |
Applications:
Molding the plastic product by plastic injection machine
