Lengthen Flange Seriers Linear Motion Bearing LMK20LUU Of CNC Machine Parts

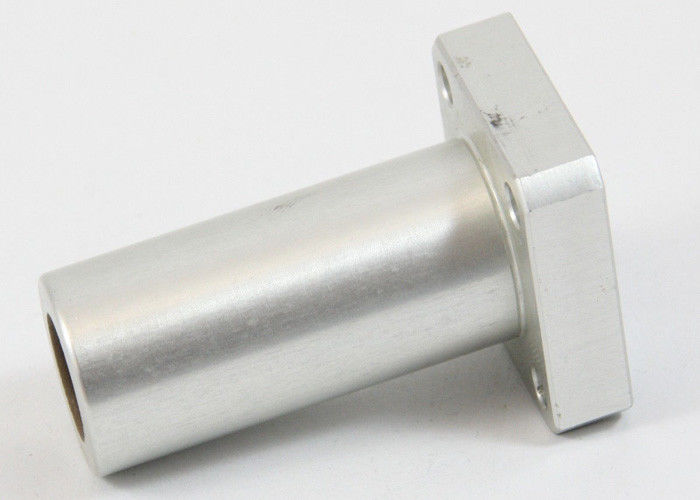

Large Image : Lengthen Flange Seriers Linear Motion Bearing LMK20LUU Of CNC Machine Parts

Product Details:

Place of Origin:	Japan
Brand Name:	THK
Certification:	CE,ISO9001
Model Number:	LMK20LUU

Payment & Shipping Terms:

Minimum Order Quantity:	5 PCS
Price:	Negotiation
Packaging Details:	1).Carton package+pallet. 2).As customers' request
Delivery Time:	7 working days after received your payment
Payment Terms:	PayPal, T/T, L/C, Western Union
Supply Ability:	10000/Week

Contact Now

We are Good Supplier of CNC Machined Parts from China

CNC Machined Parts

A customer sends a CAD file for the part to be manufactured to the system. The system assesses the CAD file to determine various pieces of manufacturing information. One or more acceptability criteria are applied to the part, such as whether the part can be machined in two opposing orientations in a 3 axis CNC machine. If not, the system sends a file to the customer graphically indicating which portions of the part need modification to be manufacturable. The system provides the customer with

Detailed Product Description

Type:	Linear	Model Number:	LMK20LUU
Bore Size:	20mm	Out Diameter:	32mm
Length:	80mm	Flange Diameter:	54mm
Type Of Linear Bearing:	Open,Flange, Rectangle	Vibration:	V1 V2 V3
Clearance:	C0 C1 C2 C3 C4 C5	Precision Rating:	P0 P6
Brand Name:	OEM	Ball Circuit:	5
Condition:	New And Original	Material:	GCR15 Chrome Steel
Highlight:	hiwin linear bearings , 8020 linear bearing

Lengthen Flange Seriers Linear Motion Bearing LMK20LUU Of CNC Machine Parts

Specifications

LMK20LUU Flange long type linear bearing
1. Good quality
2. Smooth moving
3. Low friction
4. Competitive price

Types:

"LM" metric standard type linear bearing
"LMF" means round flange type linear bearing
"LMK" means round flange type linear bearing
"LMH" means round flange type linear bearing
"UU" rubber seals on the both sides of the long type linear bearing
"OP" means open type linear bearing
"AJ" means adjustment type linear bearing
*LM...LUU means long type linear bearing

Application:
1. electronic equipment
2. tensile testing machine
3. the digital three-dimensional coordinate measuring equipment
4. precision equipment
5. multi-axis machine tools
6. presses
7. tool grinders
8. automatic gas cutting machine
9. printer, card sorting machine, food packaging machines
10. other industrial machinery sliding components.

Models:

Bearing No.	Ball rows	Weight g	C(N)	Co(N)	Inner diameter (mm)	Out diameter (mm)	Length (mm)
LMK6LUU	4	26.5	21	27	6	12	19
LMK8LUU	4	34	18	23	8	15	17
LMK10LUU	4	78	38	56	10	19	29
LMK12LUU	4	76	42	61	12	21	30
LMK13LUU	4	94	52	79	13	23	32
LMK16LUU	5	134	79	120	16	28	37
LMK20LUU	5	180	88	140	20	32	42
LMK30LUU	6	340	100	160	25	40	59
LMK25LUU	6	460	160	280	30	45	64
LMK35LUU	6	795	170	320	35	52	70
LMK40LUU	6	1054	220	410	40	60	80
LMK50LUU	6	2200	390	810	50	80	100
LMK60LUU	6	2960	480	1020	60	90	110

Features for linear bearing LMK20LUU bearing:
Linear bearing LMK20LUU bearing has the features of Low friction coefficients and long usage spans, High temperature, self-lubricated, anti-corrosion.Using feature: Linear bearings are used widely in electronic equipment, pull tester and digital three-dimensional coordinate measuring device. Such as precision equipment, as well as multi-axis machine tools, press tool, grinder automatic gas cutting machine, printer, card sorting machine, food packaging machine and other industrial machinery sliding components...

Linear bearing LMK20LUU bearing Introduction :

Lengthen Flange Seriers Linear Motion Bearing LMK20LUU Of CNC Machine Parts

LMK20LUU bearing series
LMKL6UU,LMK8LUU,LMK10LUU,LMK12LUU,LMK13LUU,LMK16LUU,LMK20LUU,LMK25LUU,LMK30LUU,LMK35LUU,LMK40LUU,LMK50LUU,LMK60LUU
LMFL6UU,LMF8LUU,LMF10LUU,LMF12LUU,LMF13LUU,LMF16LUU,LMF20LUU,LMF25LUU,LMF30LUU,LMF35LUU,LMF40LUU,LMF50LUU,LMF60LUU

Lengthen Flange Seriers Linear Motion Bearing LMK20LUU Of CNC Machine Parts
