Precision Plastic MouldThe utility model relates to a precise plastic helical gear mould. The preciseplastic helical gear mould comprises a fixed mould and a movable mould, and is characterized in that the fixed mould comprises an installation plate, a stripper plate, a fixed mould plate and an embedded piece of a fixed mould chamber, and the movable mould comprises a movable mould base plate fixed by bolts, square iron, a substrate, a movable mould plate and an embedded piece of a movablemould chamber, wherein the |
| High Light: | plastic bottle mould,plastic bottle preform |
||
|---|---|---|---|

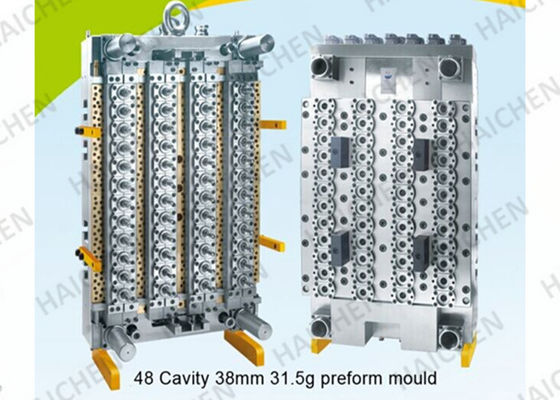

48 Cavity 30g PET Preform Mould for Plastic Bottle
Detailed Product Description:
|
Cavities: |
48 Cavity |
Mold Material: |
Steel |
|
Product Name: |
Pet Preform Mold |
Runner: |
Hot Runner |
|
Shaping Mode: |
Preform Mould |
Type: |
30g |
Quick Detail:
30g 30mm PET Preform Mould
48 Cavity
Hot Runner
Self-Lock
Core and Cavity Material: S136
Description:
High quality mold material
As you known, material is the foundation of the mold, molds high quality should be guaranteed by the high quality material firstly. Aiming at the different characteristics, we adopted different material for different mold parts:
Core part and cavity part: Stainless steel(Sweden S136)
Mold plate:P20
Hot runner system and spare parts
1. thread slide , heating plate have their cooling system to assure good cooling effect
2. slot temperature.YUDO(Korea)
3. there is a copper graphite plate and copper guide with and between slide and stripper plate to assure lubricant-effect
4. Pin valve gate, not cutting the gate by worker to save work force
5. Advanced hot runner system to assure low AA content
6. Cooling system to assure good cooling- effect to reduce the cycle time.
Competitive advantages:
For cylinder and material mouth-sealing bar: The cavity of cylinder will be machined through inner-round grinding machine, and the material mouth-sealing bar will be machine on high precision coaxial outer-round grinding machine, thus our material mouth-sealing bar can run stably driven by the outside air pressure, at the same time, and the working life is prolonged.
