| Product Name: | Swing Arm Robot | Application: | Pick And Place |
|---|---|---|---|
| Max. Load: | 3 Kg | Gripper Rotation: | 90 Degree |
| Control System: | PLC | Min Take Time: | 0.7 Sec. |
| Standard: | CE | Dry Cycle Time: | 4.2 Sec. |
| High Light: | Servo Motor Robotic Arm,robotic manipulator arm |
||

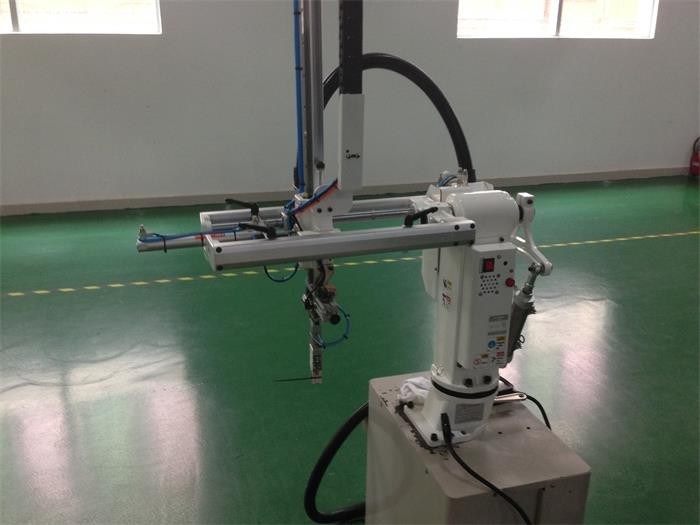

Pick and Place Machine Single Swing Industrial Robot Arm With CE Certificate
Swing-Arm Robots are extensively applied to horizontal / vertical plastic injection machines ranging from
50T~ 250T which can rapid take out the runners, runner and finished products from the mold of plastic
injection molding machines, and place runners or runner into beside-the-press granulator for recycling
immediately.
Function Features
1. X axis can rotate 90° which is for changing molds conveniently, equipped with hydraulic shock
absorber for making forward & backward stroke more stable and smooth.
2. Y axis is equipped with device to avoid pneumatic cylinder falling;
3. Z axis can be adjusted angle from 45°~90° for placing finished parts by different direction according to
requirement ( to place parts at the operate side or non-operate side of injection molding machines).
Structural Units
Employed high strength & tension aluminum alloy to work with precise linear guide way, features with light weight,
wear resistance, long service life.
Wrist Rotation Mechanism
The arm front section for installing gripper can rotate 90°; absorbs & gripper jig can be installed with sensor device
for detecting to get products or not.
Our Products:
Our company is specialized in the central feeding system, dehumidifying dryer series,
dryer series, crystallization machine, chiller series, mold temperature machine, crusher series, robots, suction machines, color mixer series and hot runner controller.
Control System
Palm controller, friendly operation interface, easy operation.
Specification
| Model | X-750 |
| Type | Single-stage |
| I.M.M.Range | 80~180T |
| Vertical Stroke | 750mm |
| Crosswise Stroke | 150mm |
| Swing Angle | 50~90 degree |
| Gripper Rotation Angle | 90 degree |
| Max.Load | 3 kg |
| Min.Take Time |
0.7 sec. |
| Dry Cycle Time |
4.2 sec. |
| Drive System | Air Pressure |
| Working Air Pressure | 0.5~0.7MPa |
| Air Consumption | 7.7L/cycle |
| Power Consumption | 0.2kw |
| Power Supply | AC220V/1P/50HZ |
| Weight | 45kg |
